Allied Telesis 18-slot Converteon chassis AT-CV5001-01

Allied Telesis Converteon™ is an end- to-end managed media conversion system. The cornerstone of the system is the 2U high, 18-slot chassis. Converteon is capable of meeting the most demanding needs, with blades available in Fast Ethernet and Gigabit converting rate and media from Fiber to Copper. A one-slot and two-slot chassis is also available for remote locations where an 18-slot chassis is not needed. Support for IEEE 802.3ah Ethernet in the First Mile (EFM) makes Converteon ideal for both service providers and the Enterprise.Power Options and RedundancyAll the sold-separately Converteon power supplies are hot swappable and modular. Installing two into a chassis provides redundancy should a single alliedtelesis.com power supply fail. In an unmanaged chassis, the status of each power supply is displayed via an LED indicator on the front panel. A fully-loaded chassis can run continuously with only one power module fitted into the chassis. Built-in intelligent fan speed auto adjustment algorithm is based on the chassis temperature monitoring. Software generates SNMP trap when chassis temperature exceeds 65 o C. Software also generates SNMP trap when FAN speed is below 2647 RPM and temperature exceeds 65 o C.Hassle-Free SupportAllied Telesis offers free technical support, ensuring trouble-free installation.

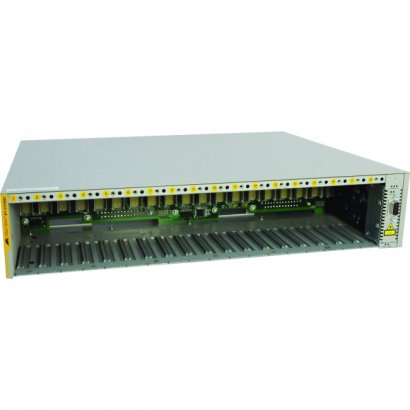

18-slot Converteon chassis
