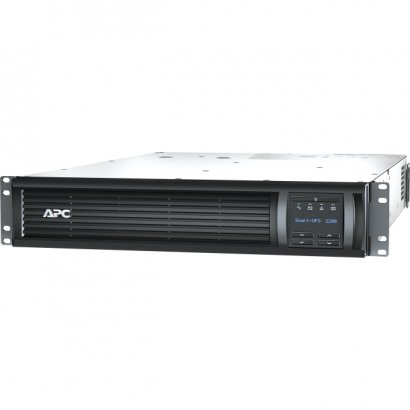

APC Smart-UPS 2200VA LCD RM 2U 120V US SMT2200RMUS

Over 20 million units sold - the UPS you can trustAPC award-winning Smart-UPS® is the most popular UPS in the world for servers, storage and networks. Trusted to protect critical data and equipment from power problems by supplying clean and reliable network-grade power. In addition to legendary reliability and manageability, Smart-UPS have extremely high efficiency at low, medium and high load levels making them ideal for today's multi-core or virtualized servers that have varying load consumption. Available in a variety of form factors (tower, rack mount, rack/tower convertible) there is a model for every application and budget. Rack mounted Smart-UPS are ideal for powering Blade or density optimized servers in a distributed power protection environment as the primary or redundant protection. Smart-UPS® models have long been considered the benchmark for all network and server UPS's. Smart-UPS feature a 16-segment LED display, extended range automatic voltage regulation (AVR), and pure sine wave output on battery. Additional manageability options are available through the Smart-Slot interface, which is an internal slot for the installation of optional accessory cards. The extended run Smart-UPS XL has the capability to add external battery packs to scale runtime from minutes to hours typically needed for converged voice and data networks. The entry level Smart-UPS SC is an economical choice for small and medium businesses looking to protect small switches, networking devices and point-of-sale (POS) equipment.

Product Type	Line-interactive UPS
Brand Name	APC
Manufacturer	American Power Conversion Corp
Product Name	Smart-UPS 2200VA LCD RM 2U 120V US
Product Line	Smart-UPS
Manufacturer Part Number	SMT2200RMUS
Manufacturer Website Address	http://www.apc.com
Maximum Battery Recharge Time	3 Hour
Backup/Run Time (Half Load)	16 Minute
Backup/Run Time (Full Load)	5 Minute
Battery Characteristics	Spill-proof, Maintenance-free
Battery Chemistry	Sealed Lead Acid
USB	Yes
Load Capacity (VA)	2200 VA
Load Capacity (Watt)	1980 W
Input Voltage	110 V AC
Output Voltage	120 V AC
Height	3.5"
Width	18.9"
Depth	26.9"
Rack Height	2U
Form Factor	Rack-mountable
Weight (Approximate)	93.28 lb
Receptacles	6 x NEMA 5-15R 2 x NEMA 5-20R
Plug/Connector Type	NEMA 5-20P
Package Contents	Smart-UPS 2200VA LCD RM 2U 120V US CD with Software Documentation CD Smart UPS Signalling RS-232 Cable USB Cable Installation Guide Rack Mounting Support Rails
Limited Warranty	3 Year

General Information
Product Type	Line-interactive UPS
Brand Name	APC
Manufacturer	American Power Conversion Corp
Product Name	Smart-UPS 2200VA LCD RM 2U 120V US
Product Line	Smart-UPS
Manufacturer Part Number	SMT2200RMUS
Manufacturer Website Address	http://www.apc.com
Battery Information
Maximum Battery Recharge Time	3 Hour
Backup/Run Time (Half Load)	16 Minute
Backup/Run Time (Full Load)	5 Minute
Battery Characteristics	Spill-proof, Maintenance-free
Battery Chemistry	Sealed Lead Acid
Interfaces/Ports
USB	Yes
Power Description
Load Capacity (VA)	2200 VA
Load Capacity (Watt)	1980 W
Input Voltage	110 V AC
Output Voltage	120 V AC
Physical Characteristics
Height	3.5"
Width	18.9"
Depth	26.9"
Rack Height	2U
Form Factor	Rack-mountable
Weight (Approximate)	93.28 lb
Technical Information
Receptacles	6 x NEMA 5-15R
Receptacles	2 x NEMA 5-20R
Plug/Connector Type	NEMA 5-20P
Miscellaneous
Package Contents	Smart-UPS 2200VA LCD RM 2U 120V US CD with Software Documentation CD Smart UPS Signalling RS-232 Cable USB Cable Installation Guide Rack Mounting Support Rails
Warranty
Limited Warranty	3 Year
