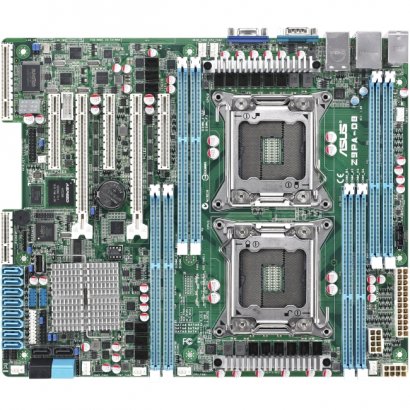

Asus Server Motherboard Z9PA-D8(ASMB6-IKVM)

Most Powerful Dual LGA2011 Serverboard in 12"x10" Compact SizeASUS proudly to announce new server board Z9PA-D8 based on Intel® E5-2600 + C602 PCH platform. The board integrates versatile features into a compact 12"x10" size which allows this board to fit into ATX chassis. Through innovative and top-notch engineering design, this board is able to support dual Intel® Xeon® E5-2600 processors up to 135W CPU. With adequately developed thermal solution in 1U rack mount, the system may support up to 115W CPU.

Product Type	Server Motherboard
Brand Name	Asus
Manufacturer	ASUS Computer International
Product Model	Z9PA-D8
Product Name	Z9PA-D8 Server Motherboard
Package Type	Retail
Manufacturer Part Number	Z9PA-D8(ASMB6-IKVM)
Manufacturer Website Address	http://usa.asus.com
Packaged Quantity	1
Green Compliant	Yes
Green Compliance Certificate/Authority	RoHS WEEE
Package Contents	Z9PA-D8 Server Motherboard ASMB6-IKVM Remote Server Management 6 x SATA Data Cables 1 x I/O Shield 1 x Support CD 1 x User's Guide 1 x USB to SATA DOM Power Cable
64-bit Processing	Yes
Chipset Manufacturer	Intel
Chipset Model	C602-A
QuickPath Interconnect	8 GT/s
Processor Socket	Socket R LGA-2011
Processor Supported	Xeon
Total Processor Supported	2
Number of Memory Slots	8
Memory Form Factor	DIMM RDIMM UDIMM LRDIMM
Memory Technology	DDR3 SDRAM
Maximum Memory	256 GB
Graphics Controller Manufacturer	ASPEED
Graphics Controller Model	AST2300
Graphics Controller Memory	16 MB
Onboard Video	On-board Video Chipset
Gigabit Ethernet	Yes
Number of SATA Interfaces	6
Total Number of Onboard USB Ports	5
RAID Supported	Yes
Controller Type	Serial ATA/600 Serial ATA/300
Number of Total Expansion Slots	6
Number of PCI Express x16 Slots	2
PCI Express Standard	PCI Express 2.0 PCI Express 3.0
Total Number of PCI Express Slots	6
Number of Network (RJ-45) Ports	3
Network (RJ-45)	Yes
Total Number of USB Ports	4
Number of USB 3.0 Ports	2
PS/2 Port	Yes
Number of PS/2 Ports	1
Width	12"
Depth	10"
Form Factor	ATX

General Information
Product Type	Server Motherboard
Brand Name	Asus
Manufacturer	ASUS Computer International
Product Model	Z9PA-D8
Product Name	Z9PA-D8 Server Motherboard
Package Type	Retail
Manufacturer Part Number	Z9PA-D8(ASMB6-IKVM)
Manufacturer Website Address	http://usa.asus.com
Packaged Quantity	1
Miscellaneous
Green Compliant	Yes
Green Compliance Certificate/Authority	RoHS
Green Compliance Certificate/Authority	WEEE
Package Contents	Z9PA-D8 Server Motherboard ASMB6-IKVM Remote Server Management 6 x SATA Data Cables 1 x I/O Shield 1 x Support CD 1 x User's Guide 1 x USB to SATA DOM Power Cable
Processor & Chipset
64-bit Processing	Yes
Chipset Manufacturer	Intel
Chipset Model	C602-A
QuickPath Interconnect	8 GT/s
Processor Socket	Socket R LGA-2011
Processor Supported	Xeon
Total Processor Supported	2
Memory
Number of Memory Slots	8
Memory Form Factor	DIMM
Memory Form Factor	RDIMM
Memory Form Factor	UDIMM
Memory Form Factor	LRDIMM
Memory Technology	DDR3 SDRAM
Maximum Memory	256 GB
Video
Graphics Controller Manufacturer	ASPEED
Graphics Controller Model	AST2300
Graphics Controller Memory	16 MB
Onboard Video	On-board Video Chipset
Network & Communication
Gigabit Ethernet	Yes
Onboard Interfaces
Number of SATA Interfaces	6
Total Number of Onboard USB Ports	5
I/O Controller
RAID Supported	Yes
Controller Type	Serial ATA/600
Controller Type	Serial ATA/300
I/O Expansions
Number of Total Expansion Slots	6
Number of PCI Express x16 Slots	2
PCI Express Standard	PCI Express 2.0
PCI Express Standard	PCI Express 3.0
Total Number of PCI Express Slots	6
Interfaces/Ports
Number of Network (RJ-45) Ports	3
Network (RJ-45)	Yes
Total Number of USB Ports	4
Number of USB 3.0 Ports	2
PS/2 Port	Yes
Number of PS/2 Ports	1
Physical Characteristics
Width	12"
Depth	10"
Form Factor	ATX
