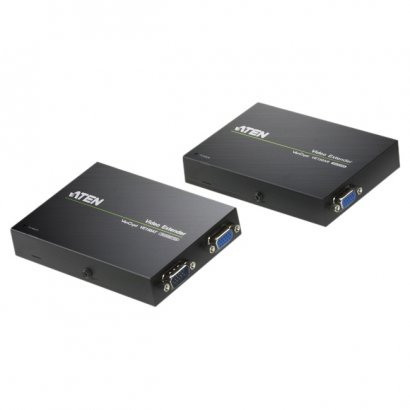

Aten Video Extender VE150A

VE150A video extender comprises a local transmitting unit and a remote receiving unit which are connected by standard Cat 5e cables. The distance of both units can be extended up to 150m. It is ideal for factories and construction sites, or any location where the display may need to expose in a risky setting, but you want the system to be kept in a safe location.

Product Type	Video Console/Extender
Brand Name	Aten
Manufacturer	Aten Technologies
Product Name	Video Extender
Manufacturer Part Number	VE150A
Manufacturer Website Address	http://www.aten-usa.com
Graphics Modes	VGA XGA SVGA UXGA WUXGA
Maximum Video Resolution	1920 x 1200
Green Compliant	Yes
Green Compliance Certificate/Authority	RoHS WEEE
Package Contents	1 x VE150AT Video Extender (Local unit) 1 x VE150AR Video Extender (Remote unit) 2 x Power Adapters 1 x VGA Cable 1 x Mounting Kit 1 x User Instructions
Twisted Pair Cable Standard	Category 5
Media Type Supported	Twisted Pair
Maximum Operating Distance	492.13 ft
Number of Output Devices Supported	2
Number of Input Devices Supported	1
Connectivity Technology	Wired
Number of Network (RJ-45) Ports	2
Network (RJ-45)	Yes
VGA In	Yes
Number of VGA Inputs	1
Height	0.9"
Width	3.6"
Form Factor	Rack-mountable
Length	5"
Weight (Approximate)	8.47 oz
Input Voltage	5.3 V DC

General Information
Product Type	Video Console/Extender
Brand Name	Aten
Manufacturer	Aten Technologies
Product Name	Video Extender
Manufacturer Part Number	VE150A
Manufacturer Website Address	http://www.aten-usa.com
Video
Graphics Modes	VGA
Graphics Modes	XGA
Graphics Modes	SVGA
Graphics Modes	UXGA
Graphics Modes	WUXGA
Maximum Video Resolution	1920 x 1200
Miscellaneous
Green Compliant	Yes
Green Compliance Certificate/Authority	RoHS
Green Compliance Certificate/Authority	WEEE
Package Contents	1 x VE150AT Video Extender (Local unit) 1 x VE150AR Video Extender (Remote unit) 2 x Power Adapters 1 x VGA Cable 1 x Mounting Kit 1 x User Instructions
Media & Performance
Twisted Pair Cable Standard	Category 5
Media Type Supported	Twisted Pair
Technical Information
Maximum Operating Distance	492.13 ft
Number of Output Devices Supported	2
Number of Input Devices Supported	1
Connectivity Technology	Wired
Interfaces/Ports
Number of Network (RJ-45) Ports	2
Network (RJ-45)	Yes
VGA In	Yes
Number of VGA Inputs	1
Physical Characteristics
Height	0.9"
Width	3.6"
Form Factor	Rack-mountable
Length	5"
Weight (Approximate)	8.47 oz
Power Description
Input Voltage	5.3 V DC
