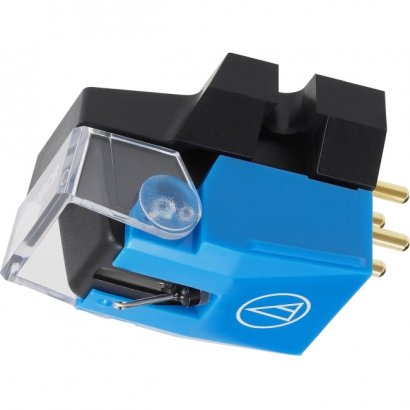

Audio-Technica Dual Moving Magnet Mono Cartridge VM610MONO

Mono LP model with a conical bonded stylus in the body dedicated to monaural sound. Specialised internal wiring allows for reduced surface noise and stable sound reproduction. Aluminium cantilever Para-toroidal coils improve generating efficiency Mono body terminating left and right channels reduces surface noise Durable low resonance polymer housing AUDIO-TECHNICA'S INTERNATIONALLY-PATENTED DUAL MAGNET DESIGN REPLICATES THE STRUCTURE OF THE CUTTER HEAD.Instead of using a single, large magnet, the two magnets are arranged in the shape of a "V". The two magnets are positioned precisely to match the positions of the left and right channels in the stereo groove walls. Consequently, the VM design ensures outstanding channel separation, extended frequency response and superb tracking.PARA-TOROIDAL GENERATING SYSTEMPara-toroidal coils improve generating efficiency and offers superb linearity, since leakage of magnetic flux in this continuous and unitised magnetic circuit is low. Permeability of the cores is also optimised through the use of laminated cores.MONO BODYFor monaural operation, left and right channels should be connected. A mono body on which left and right terminals are connected internally reduces record noise which is primarily in the vertical direction and obtains a highly focused 'centre' sound image compared with stereo bodies.600 SERIESSpecialised 600 series mono body with internal wiring dedicated to monaural sound.CONICAL BONDED STYLUSThe benefit of conical styli, even if the cartridge is "lean", is the ball surface of the stylus touches the groove of vinyl records precisely. Due to its stability, it has been used widely at radio stations.

Dual Moving Magnet Mono Cartridge
