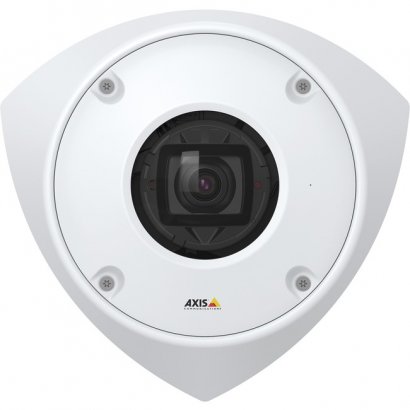

AXIS Network Camera 01766-001

AXIS Q9216-SLV is a compact and robust ligature-resistant (anti-ligature) corner-mount camera specially designed to provide a wide field-of-view and ensure no area is left uncovered. Available in white and elegant stainless-steel, this low power consuming camera is ideal for high-security installations such as in prisons and psychiatric wards. See it all - day and night AXIS Q9216-SLV offers 4 MP video quality and can cover 125 degrees horizontally and 95 degrees vertically, with no blind spots. Ideal in prison cells, it features 940 nm invisible IR illumination for unobtrusive surveillance in total darkness that won't irritate or provoke the occupant.* Wide Dynamic Range (WDR) ensures clarity even when there's both dark and light areas in the scene. And, Axis Zipstream technology with support for both H.264 and H.265 video compression significantly reduces bandwidth and storage requirements without compromising image quality. Occupant safety and privacy With a ligature-resistant (anti-ligature) design, this robust camera can help prevent self-harm, especially important in high-security installations. The vandal-resistant IK10+ rated casing also offers IP66-rating for protection from dust and water. For added peace of mind, it includes a tampering alarm as well as shock and casing open detection so you can be informed if there's any attempt to interfere with the camera. It features a removable built-in microphone which can be mounted if audio surveillance is required. Furthermore, AXIS Q9216-SLV includes an indication LED to see if the camera is active or not as well as polygonal privacy masking ensuring occupant privacy is respected. Enhanced security features This high-performance camera is packed with advanced security functionality to prevent unauthorized access and safeguard your system. Signed firmware ensures that only authorized firmware is installed and guarantees that it hasn't been compromised. Furthermore, it includes a Trusted Platform Module (TPM, FIPS 140-2 level 2 certified) to ensure secure storage of all cryptographic keys and certificates even in the event of a security breach. Compact and easy to install This compact camera offers simple and cost-effective installation. The chassis and mounting bracket are specially designed for versatile cable management and mounting options. It's possible to connect to various conduits and connectivity devices to the back of the camera, such as AXIS T8643 PoE+ over Coax Compact or other compatible media converters and PoE extenders. Additionally, you can mount a conduit top box with space for additional conduits. Once the camera is mounted you can create a ligature-resistant (anti-ligature) installation by applying tamper-resistant security sealant along the edges to permanently seal it to the wall or ceiling. And, even if the back chassis is sealed to the wall, the camera can still be easily removed for service and maintenance. Easy to clean and maintain For ease of maintenance, the stainless-steel casing is IP66- and IP6k9k-rated to allow cleaning with high pressure, high temperature water jets. If the camera is severely soiled or defaced, the abrasion-resistant two-part front cover is easily removed, and the window can be cleaned more thoroughly with detergent or simple graffiti remover.

HDMI	Yes
Network (RJ-45)	Yes
Color Supported	Color Monochrome
Image Sensor Type	RGB CMOS
Effective Camera Resolution	4 Megapixel
Minimum Operating Temperature	-4°F (-20°C)
Maximum Operating Temperature	122°F (50°C)
Operating Humidity	85%
Longest Shutter Speed	1/5 Second
Shortest Shutter Speed	1/32500 Second
Product Type	Network Camera
Manufacturer Part Number	01766-001
Manufacturer Website Address	http://www.axis.com
Manufacturer	Axis Communications
Product Model	Q9216-SLV
Product Name	Q9216-SLV Network Camera
Brand Name	AXIS
Lens Type	Fixed
Maximum Aperture	f/2.0
Maximum Focal Length	2.40 mm
Lens Mount Type	M12-mount
Package Contents	Q9216-SLV Network Camera Installation Guide Windows decoder 1-User License AVHS Authentication Key AXIS Device Microphone A AXIS Connector A 4-p=Pin 2.5 Straight Cable Gaskets RESISTORX 20 Bit
Features	SD Card Local Storage Password Protection HTTPS Encryption Defog PTZ Wide Dynamic Range White Balance Day/Night Microphone In
Country of Origin	Poland
TAA Compliant	Yes
Indoor/Outdoor	Outdoor
Impact Protection Rating	IK10
Ingress Protection Rating	IP69 IP66 IP6K9K
Connectivity Technology	Wired
Remote Management	Yes
Weight (Approximate)	3.53 lb
Durability	Impact Resistant
Form Factor	Dome
Mount Type	Conduit Mount Corner Mount
Height	5.2"
Width	8.2"
Depth	6.9"
Product Color	Stainless Steel
Night Vision	Yes
HD Recording	Yes
Night Vision Distance	49.21 ft
Night Vision Type	Infrared
Video Formats	H.264 (MPEG-4 Part 10/AVC) H.264M H.264H H.265 (MPEG-H Part 2/HEVC) MJPEG H.264 H.265
Maximum Video Resolution	2304 x 1728
Limited Warranty	3 Year

Interfaces/Ports
HDMI	Yes
Network (RJ-45)	Yes
Display & Graphics
Color Supported	Color
Color Supported	Monochrome
Image Sensor Type	RGB CMOS
Effective Camera Resolution	4 Megapixel
Environmental Conditions
Minimum Operating Temperature	-4°F (-20°C)
Maximum Operating Temperature	122°F (50°C)
Operating Humidity	85%
Exposure
Longest Shutter Speed	1/5 Second
Shortest Shutter Speed	1/32500 Second
General Information
Product Type	Network Camera
Manufacturer Part Number	01766-001
Manufacturer Website Address	http://www.axis.com
Manufacturer	Axis Communications
Product Model	Q9216-SLV
Product Name	Q9216-SLV Network Camera
Brand Name	AXIS
Lens
Lens Type	Fixed
Maximum Aperture	f/2.0
Maximum Focal Length	2.40 mm
Lens Mount Type	M12-mount
Miscellaneous
Package Contents	Q9216-SLV Network Camera Installation Guide Windows decoder 1-User License AVHS Authentication Key AXIS Device Microphone A AXIS Connector A 4-p=Pin 2.5 Straight Cable Gaskets RESISTORX 20 Bit
Features	SD Card Local Storage
Features	Password Protection
Features	HTTPS Encryption
Features	Defog
Features	PTZ
Features	Wide Dynamic Range
Features	White Balance
Features	Day/Night
Features	Microphone In
Country of Origin	Poland
TAA Compliant	Yes
Indoor/Outdoor	Outdoor
Impact Protection Rating	IK10
Ingress Protection Rating	IP69
Ingress Protection Rating	IP66
Ingress Protection Rating	IP6K9K
Network & Communication
Connectivity Technology	Wired
Remote Management	Yes
Physical Characteristics
Weight (Approximate)	3.53 lb
Durability	Impact Resistant
Form Factor	Dome
Mount Type	Conduit Mount
Mount Type	Corner Mount
Height	5.2"
Width	8.2"
Depth	6.9"
Product Color	Stainless Steel
Technical Information
Night Vision	Yes
HD Recording	Yes
Night Vision Distance	49.21 ft
Night Vision Type	Infrared
Video
Video Formats	H.264 (MPEG-4 Part 10/AVC)
Video Formats	H.264M
Video Formats	H.264H
Video Formats	H.265 (MPEG-H Part 2/HEVC)
Video Formats	MJPEG
Video Formats	H.264
Video Formats	H.265
Maximum Video Resolution	2304 x 1728
Warranty
Limited Warranty	3 Year
