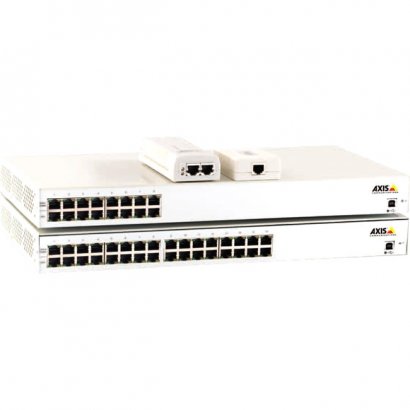

AXIS Midspan 15 W 1-Port 5026-204

Power over Ethernet (PoE) offers an easy, fast and cost-effective solution for supplying power to network video products without the need to install power outlets and electrical cabling. Simply connect the Axis PoE midspans and PoE splitters to the network, and the network video products are supplied with power.Axis PoE midspans provide power (max. 15.4 W per port) over Ethernet cables to network video products with built-in PoE support. For a network video product without built-in PoE support, a PoE splitter must be used to separate power and data coming over the network cable.

Output Ports	1 x RJ-45
Product Type	PoE Injector
Brand Name	AXIS
Manufacturer	Axis Communications
Product Model	T8120
Product Name	T8120 Midspan 15 W 1-Port
Manufacturer Part Number	5026-204
Manufacturer Website Address	http://www.axis.com
Certifications & Standards	IEEE 802.3 IEEE 802.3af FCC Part 15 Class B EN55022 (CISPR 22) Class B Safety: cUL UL TUV CE
Height	1.2"
Width	2.4"
Depth	5.7"
Form Factor	Wall Mountable
Weight (Approximate)	15.87 oz
Compatibility	Video Encoders Axis Network Cameras: PTZ PTZ Dome
Input Voltage	110 V AC 220 V AC
Output Power	15.40 W Per Port
Output Voltage	48 V DC
Limited Warranty	3 Year

Interfaces/Ports
Output Ports	1 x RJ-45
General Information
Product Type	PoE Injector
Brand Name	AXIS
Manufacturer	Axis Communications
Product Model	T8120
Product Name	T8120 Midspan 15 W 1-Port
Manufacturer Part Number	5026-204
Manufacturer Website Address	http://www.axis.com
Miscellaneous
Certifications & Standards	IEEE 802.3 IEEE 802.3af FCC Part 15 Class B EN55022 (CISPR 22) Class B Safety: cUL UL TUV CE
Physical Characteristics
Height	1.2"
Width	2.4"
Depth	5.7"
Form Factor	Wall Mountable
Weight (Approximate)	15.87 oz
Technical Information
Compatibility	Video Encoders Axis Network Cameras: PTZ PTZ Dome
Input Voltage	110 V AC
Input Voltage	220 V AC
Output Power	15.40 W Per Port
Output Voltage	48 V DC
Warranty
Limited Warranty	3 Year
