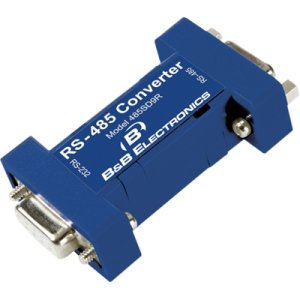

B&B Convert RS-232 to 422/485 with Port Power 485SD9R

These port-powered RS-232 to 422/485 converters change TD and RD RS-232 lines to 422/485 signals. All of our serial port converters feature Automatic Send Data Control. SDC automatically enables the RS-485 driver when data is present on the RS-232 side. Control of the driver is automatic at rates up to 115.2 kbps.

Product Type	Data Transfer Adapter
Brand Name	B&B
Manufacturer	B&B Electronics Mfg. Co
Product Model	485SD9R
Product Name	Convert RS-232 to 422/485 with Port Power
Manufacturer Part Number	485SD9R
Manufacturer Website Address	http://www.bb-elec.com
Packaged Quantity	1
Green Compliant	Yes
Green Compliance Certificate/Authority	RoHS
Country of Origin	United States
Height	4.5"
Width	3"
Weight (Approximate)	1.60 oz
Connector on First End	1 x 9-pin DB-9 Female RS-232 Serial
Connector on Second End	1 x 9-pin DB-9 Female RS-485 Serial
Adapter Type	Serial
Limited Warranty	Lifetime

General Information
Product Type	Data Transfer Adapter
Brand Name	B&B
Manufacturer	B&B Electronics Mfg. Co
Product Model	485SD9R
Product Name	Convert RS-232 to 422/485 with Port Power
Manufacturer Part Number	485SD9R
Manufacturer Website Address	http://www.bb-elec.com
Packaged Quantity	1
Miscellaneous
Green Compliant	Yes
Green Compliance Certificate/Authority	RoHS
Country of Origin	United States
Physical Characteristics
Height	4.5"
Width	3"
Weight (Approximate)	1.60 oz
Technical Information
Connector on First End	1 x 9-pin DB-9 Female RS-232 Serial
Connector on Second End	1 x 9-pin DB-9 Female RS-485 Serial
Adapter Type	Serial
Warranty
Limited Warranty	Lifetime
