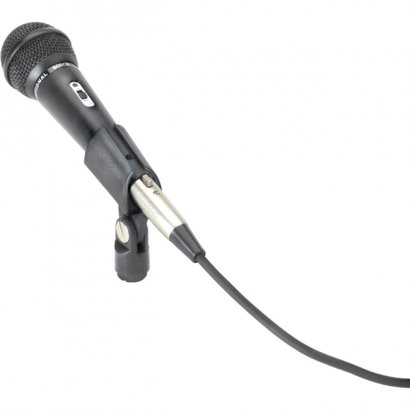

Bosch Condenser Handheld Microphone LBB9600/20

This condenser microphone is based on an electric transducer element in a sturdy housing with shielding against wind and wind bursts (pops). It is intended for public address and sound reinforcement applications, such as in churches, theaters, and conference centers. Functions The handheld LBB 9600/20 is an excellent microphone with almost frequency independent, unidirectional directivity. Its low equivalent input noise level and insensitivity to stray electrostatic and electromagnetic fields keep the audio signal free from spurious noise.

Host Interface	XLR
Product Type	Microphone
Product Series	LBB
Brand Name	Bosch
Manufacturer	The Bosch Group
Product Model	LBB 9600/20
Product Name	LBB 9600/20 Condenser Handheld Microphone
Manufacturer Part Number	LBB9600/20
Manufacturer Website Address	http://www.bosch.com
Microphone Type	Handheld
Microphone Sensitivity	-3 dB
Microphone Technology	Condenser
Package Contents	LBB 9600/20 Condenser Handheld Microphone Push-on Clip with a Whitworth-Threaded Screw Fitting Multi-Thread Adaptor (3/8", 1?2", and 5/8") 7 m (23 ft) Connection Cable
Diameter	2.1"
Color	Black
Length	6.7"
Weight (Approximate)	8.64 oz
Minimum Frequency Response	100 Hz
Maximum Frequency Response	16 kHz
Connectivity Technology	Wired
Cable Length	22.97 ft

Interfaces/Ports
Host Interface	XLR
General Information
Product Type	Microphone
Product Series	LBB
Brand Name	Bosch
Manufacturer	The Bosch Group
Product Model	LBB 9600/20
Product Name	LBB 9600/20 Condenser Handheld Microphone
Manufacturer Part Number	LBB9600/20
Manufacturer Website Address	http://www.bosch.com
Microphone
Microphone Type	Handheld
Microphone Sensitivity	-3 dB
Microphone Technology	Condenser
Miscellaneous
Package Contents	LBB 9600/20 Condenser Handheld Microphone Push-on Clip with a Whitworth-Threaded Screw Fitting Multi-Thread Adaptor (3/8", 1?2", and 5/8") 7 m (23 ft) Connection Cable
Physical Characteristics
Diameter	2.1"
Color	Black
Length	6.7"
Weight (Approximate)	8.64 oz
Technical Information
Minimum Frequency Response	100 Hz
Maximum Frequency Response	16 kHz
Connectivity Technology	Wired
Cable Length	22.97 ft
