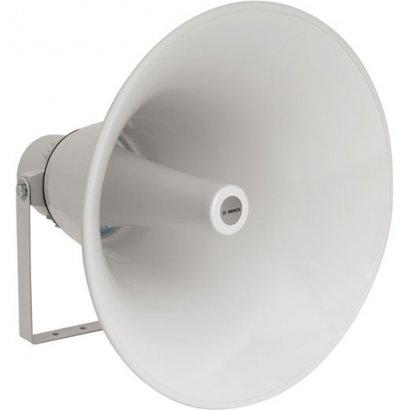

Bosch Horn Loudspeaker LBC3484/00-US

Bosch high-efficiency horn loudspeakers provide excellent speech reproduction and sound distribution for a wide scope of outdoor applications. They are ideal for sports grounds, parks, exhibitions, factories and swimming pools.

Product Type	Speaker
Brand Name	Bosch
Manufacturer	The Bosch Group
Product Model	LBC 3484/00
Product Name	LBC 3484/00 Horn Loudspeaker
Manufacturer Part Number	LBC3484/00-US
Manufacturer Website Address	http://www.bosch.com
Certifications & Standards	IP 65 BS 5839-8 EN 60849 CE UL 94 V0 IEC 268-5 EN 60065 IEC 60529 NEN 6702: 2007 + A1: 2008 EVAC
Package Contents	LBC 3484/00 Horn Loudspeaker Steel Mounting Brackets 1 x PG 13.5 Cable Gland (Fitted)
Speaker Installation	Outdoor
Diameter	19.3"
Height	19.6"
Color	Light Gray
Form Factor	Wall Mountable
Material	Aluminum Polyvinyl Chloride (PVC) Acrylonitrile Butadiene Styrene (ABS) Steel
Weight (Approximate)	13.23 lb
Crossover Type	3-way
Minimum Frequency Response	350 Hz
Maximum Frequency Response	4 kHz
RMS Output Power	50 W
PMPO Output Power	75 W
Impedance	200 Ohm

General Information
Product Type	Speaker
Brand Name	Bosch
Manufacturer	The Bosch Group
Product Model	LBC 3484/00
Product Name	LBC 3484/00 Horn Loudspeaker
Manufacturer Part Number	LBC3484/00-US
Manufacturer Website Address	http://www.bosch.com
Miscellaneous
Certifications & Standards	IP 65 BS 5839-8 EN 60849 CE UL 94 V0 IEC 268-5 EN 60065 IEC 60529 NEN 6702: 2007 + A1: 2008 EVAC
Package Contents	LBC 3484/00 Horn Loudspeaker Steel Mounting Brackets 1 x PG 13.5 Cable Gland (Fitted)
Physical Characteristics
Speaker Installation	Outdoor
Diameter	19.3"
Height	19.6"
Color	Light Gray
Form Factor	Wall Mountable
Material	Aluminum
Material	Polyvinyl Chloride (PVC)
Material	Acrylonitrile Butadiene Styrene (ABS)
Material	Steel
Weight (Approximate)	13.23 lb
Technical Information
Crossover Type	3-way
Minimum Frequency Response	350 Hz
Maximum Frequency Response	4 kHz
RMS Output Power	50 W
PMPO Output Power	75 W
Impedance	200 Ohm
