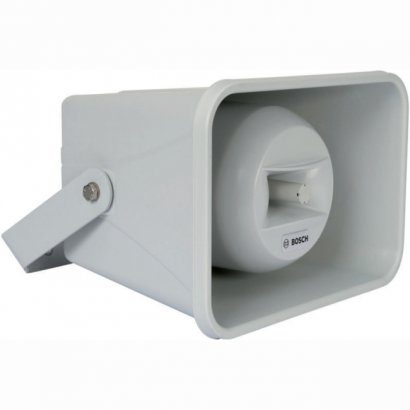

Bosch Music Horn Loudspeaker LH1-UC30E

The Bosch LH1-UC30E Music Horn Loudspeaker features a two-way system, resulting in an extended frequency range and high sensitivity which makes it ideal for high quality speech and music reproduction.

Product Type	Speaker
Brand Name	Bosch
Manufacturer	The Bosch Group
Product Model	LH1?UC30E
Product Name	LH1-UC30E Music Horn Loudspeaker
Manufacturer Part Number	LH1-UC30E
Manufacturer Website Address	http://www.bosch.com
Packaged Quantity	1
Certifications & Standards	EN 54-24 CE CPD BS 5839-8 EN 60849 IEC 268-5 EN 60065 UL 94 V 0 IEC 60529 IP 65 NEN 6702 + A1 Bft 11 IEC 60268-5 EN 54-24:2008
Package Contents	LH1-UC30E Music Horn Loudspeaker 1 x PG13.5 Cable Gland (Fitted)
Speaker Installation	Outdoor
Height	10"
Width	14.6"
Depth	13.9"
Color	Light Gray
Material	Acrylonitrile Butadiene Styrene (ABS) Aluminum Ceramic
Weight (Approximate)	12.13 lb
Crossover Type	2-way
Minimum Frequency Response	212 Hz
Maximum Frequency Response	20 kHz
RMS Output Power	30 W
PMPO Output Power	45 W
Driver Type	Woofer Tweeter
Impedance	333 Ohm

General Information
Product Type	Speaker
Brand Name	Bosch
Manufacturer	The Bosch Group
Product Model	LH1?UC30E
Product Name	LH1-UC30E Music Horn Loudspeaker
Manufacturer Part Number	LH1-UC30E
Manufacturer Website Address	http://www.bosch.com
Packaged Quantity	1
Miscellaneous
Certifications & Standards	EN 54-24 CE CPD BS 5839-8 EN 60849 IEC 268-5 EN 60065 UL 94 V 0 IEC 60529 IP 65 NEN 6702 + A1 Bft 11 IEC 60268-5 EN 54-24:2008
Package Contents	LH1-UC30E Music Horn Loudspeaker 1 x PG13.5 Cable Gland (Fitted)
Physical Characteristics
Speaker Installation	Outdoor
Height	10"
Width	14.6"
Depth	13.9"
Color	Light Gray
Material	Acrylonitrile Butadiene Styrene (ABS)
Material	Aluminum
Material	Ceramic
Weight (Approximate)	12.13 lb
Technical Information
Crossover Type	2-way
Minimum Frequency Response	212 Hz
Maximum Frequency Response	20 kHz
RMS Output Power	30 W
PMPO Output Power	45 W
Driver Type	Woofer
Driver Type	Tweeter
Impedance	333 Ohm
