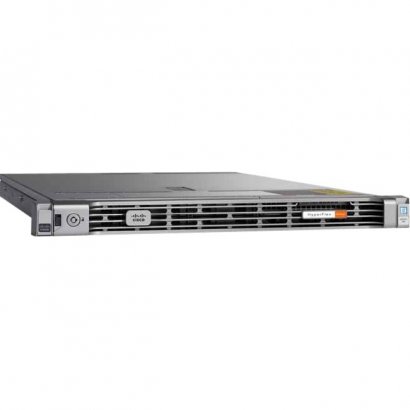

Cisco HyperFlex HXAF220c M4 Barebone System HXAF220C-M4S

Cisco HyperFlex™ Systems unlock the full potential of hyperconvergence. The systems are based on an end-to-end software-defined infrastructure, combining software-defined computing in the form of Cisco Unified Computing System (Cisco UCS) servers; software-defined storage with the powerful Cisco HX Data Platform and software-defined networking with the Cisco UCS fabric that will integrate smoothly with Cisco Application Centric Infrastructure (Cisco ACI™). Together with a single point of connectivity and hardware management, these technologies deliver a preintegrated and adaptable cluster that is ready to provide a unified pool of resources to power applications as your business needs dictate.

Product Type	Barebone System
Product Series	HXAF220c M4
Brand Name	Cisco
Manufacturer	Cisco Systems, Inc
Product Name	HyperFlex HXAF220c M4 Barebone System
Product Line	HyperFlex
Manufacturer Part Number	HXAF220C-M4S
Manufacturer Website Address	http://www.cisco.com
Chipset Manufacturer	Intel
Chipset Model	C610
Graphics Controller Manufacturer	Matrox
Graphics Controller Model	G200e
Graphics Memory Capacity	8 MB
Number of Power Supplies Installed	2
Maximum Power Supply Wattage	770 W
Input Voltage	120 V AC 230 V AC
Number of Internal 2.5" Bays	8
Number of Total Expansion Bays	8
Number of Total Expansion Slots	2
Number of PCI Express x16 Slots	2
Number of Total Memory Slots	24
Memory Standard	DDR4-2400/PC4-19200
Memory Technology	DDR4 SDRAM
Maximum Memory Supported	1.50 TB
Number of Nodes	1
Number of Processors Supported	2
Processor Supported	Xeon
RAID Supported	No
Controller Type	12Gb/s SAS
Ethernet Technology	Gigabit Ethernet
Total Number of USB Ports	2
Number of USB 3.0 Ports	2
Height	1.7"
Width	19"
Depth	31"
Rack Height	1U
Form Factor	Rack-mountable
Weight (Approximate)	37.90 lb
Limited Warranty	3 Year

General Information
Product Type	Barebone System
Product Series	HXAF220c M4
Brand Name	Cisco
Manufacturer	Cisco Systems, Inc
Product Name	HyperFlex HXAF220c M4 Barebone System
Product Line	HyperFlex
Manufacturer Part Number	HXAF220C-M4S
Manufacturer Website Address	http://www.cisco.com
Chipset
Chipset Manufacturer	Intel
Chipset Model	C610
Display & Graphics
Graphics Controller Manufacturer	Matrox
Graphics Controller Model	G200e
Graphics Memory Capacity	8 MB
Power Description
Number of Power Supplies Installed	2
Maximum Power Supply Wattage	770 W
Input Voltage	120 V AC
Input Voltage	230 V AC
I/O Expansions
Number of Internal 2.5" Bays	8
Number of Total Expansion Bays	8
Number of Total Expansion Slots	2
Number of PCI Express x16 Slots	2
Memory
Number of Total Memory Slots	24
Memory Standard	DDR4-2400/PC4-19200
Memory Technology	DDR4 SDRAM
Maximum Memory Supported	1.50 TB
Processor
Number of Nodes	1
Number of Processors Supported	2
Processor Supported	Xeon
Controllers
RAID Supported	No
Controller Type	12Gb/s SAS
Network & Communication
Ethernet Technology	Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports	2
Number of USB 3.0 Ports	2
Physical Characteristics
Height	1.7"
Width	19"
Depth	31"
Rack Height	1U
Form Factor	Rack-mountable
Weight (Approximate)	37.90 lb
Warranty
Limited Warranty	3 Year
