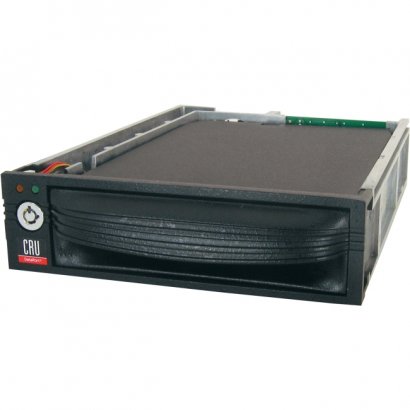

CRU DataPort 10 SAS/SATA 6G (Serial Attached SCSI/ Serial ATA) 8440-6503-0500

DataPort 10 SAS/SATA 6G (Serial Attached SCSI/ Serial ATA)Rugged, yet affordable. Designed to fit smaller drive bay openings from PC manufacturers like Dell, IBM and HP. Supports SATA 6Gbps. Features patented drive cooling technology and 30,000+ insertion-rated connectors. The DataPort 10 SAS/SATA is high performance removable storage in a compact enclosure designed to fit most desktop and mini-tower 5.25" bays. Engineered to support both affordable SATA and enterprise level SAS hard drives, the DataPort 10's rugged all-aluminum construction provides superior protection and cooling. The interconnect is warranted for 30k insertions and tested for 6 Gpbs full duplex operation, which delivers up to 1200MB in certain applications. When connected to a SAS host bus adaptor, the DataPort 10 SAS/SATA carrier supports both SAS and SATA HDDs. This feature allows data migration from SATA systems to SAS Workstations or Servers.

Product Type	Drive Bay Adapter
Brand Name	CRU
Manufacturer	CRU Acquisitions Group, LLC
Product Name	DataPort 10 SAS/SATA 6G (Serial Attached SCSI/ Serial ATA)
Product Line	DataPort 10
Manufacturer Part Number	8440-6503-0500
Manufacturer Website Address	http://www.cru-dataport.com
Compatible Drive Bay Width	5.25"
Height	1.6"
Width	5.7"
Depth	7.9"
Form Factor	Internal
Weight (Approximate)	3 lb
Number of Total Expansion Bays	1
Number of 3.5" Bays	1
Number of 5.25" Bays	No
Number of 2.5" Bays	No
Number of 2.5"/3.5" Bays	No
Number of 1.8" Bays	No
Drive Interface	SAS Serial ATA/600
Package Contents	DataPort 10 SAS/SATA 6G (Serial Attached SCSI/ Serial ATA) SATA Power Adapter Cable
Limited Warranty	5 Year

General Information
Product Type	Drive Bay Adapter
Brand Name	CRU
Manufacturer	CRU Acquisitions Group, LLC
Product Name	DataPort 10 SAS/SATA 6G (Serial Attached SCSI/ Serial ATA)
Product Line	DataPort 10
Manufacturer Part Number	8440-6503-0500
Manufacturer Website Address	http://www.cru-dataport.com
Physical Characteristics
Compatible Drive Bay Width	5.25"
Height	1.6"
Width	5.7"
Depth	7.9"
Form Factor	Internal
Weight (Approximate)	3 lb
I/O Expansions
Number of Total Expansion Bays	1
Number of 3.5" Bays	1
Number of 5.25" Bays	No
Number of 2.5" Bays	No
Number of 2.5"/3.5" Bays	No
Number of 1.8" Bays	No
Interfaces/Ports
Drive Interface	SAS
Drive Interface	Serial ATA/600
Miscellaneous
Package Contents	DataPort 10 SAS/SATA 6G (Serial Attached SCSI/ Serial ATA) SATA Power Adapter Cable
Warranty
Limited Warranty	5 Year
