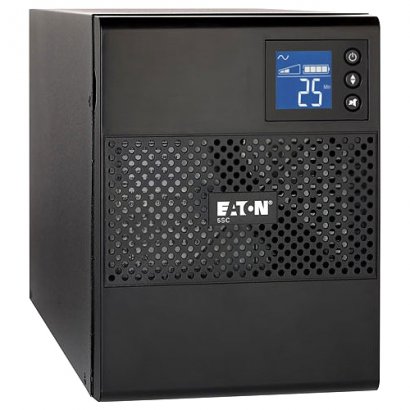

Eaton 5SC UPS 5SC1500G

The flexible Eaton 5SC UPS delivers affordable and reliable protection for small business servers, storage and network equipment. The LCD interface provides clear status of UPS key parameters and allows configuration for output voltage, audible alarm and power input sensitivity. By using Eaton's Intelligent Power Manager software with the 5SC UPS you get up-to-the-minute information on the status of power in your network. The 5SC offers pure sinewave output for sensitive equipment as well as buck and boost operation to correct a wide range of input voltage variations without using batteries.

Product Type	Line-interactive UPS
Product Series	5SC
Brand Name	Eaton
Manufacturer	Eaton Corporation
Product Name	5SC UPS
Manufacturer Part Number	5SC1500G
Manufacturer Website Address	http://www.eaton.com/EatonCom/Markets/NorthAmerica
USB	Yes
Network (RJ-45)	Yes
Serial Port	Yes
Backup/Run Time (Half Load)	12 Minute
Backup/Run Time (Full Load)	5 Minute
Battery Characteristics	Maintenance-free, Sealed
Battery Chemistry	Lead Acid
Load Capacity (VA)	1500 VA
Load Capacity (Watt)	1050 W
Input Voltage	220 V AC
Output Voltage	230 V AC
Height	8.2"
Width	5.9"
Depth	16.1"
Form Factor	Tower
Weight (Approximate)	33.50 lb
Receptacles	8 x IEC 60320 C13
Plug/Connector Type	IEC 60320 C14
Package Contents	5SC UPS User Manual CD Intelligent Power Manager Software CD USB Cable Serial Cable (RJ45 to DB9) Important Safety Instructions 2 x C13 to C14 Jumper Cables Limited Warranty Details
Limited Warranty	3 Year

General Information
Product Type	Line-interactive UPS
Product Series	5SC
Brand Name	Eaton
Manufacturer	Eaton Corporation
Product Name	5SC UPS
Manufacturer Part Number	5SC1500G
Manufacturer Website Address	http://www.eaton.com/EatonCom/Markets/NorthAmerica
Interfaces/Ports
USB	Yes
Network (RJ-45)	Yes
Serial Port	Yes
Battery Information
Backup/Run Time (Half Load)	12 Minute
Backup/Run Time (Full Load)	5 Minute
Battery Characteristics	Maintenance-free, Sealed
Battery Chemistry	Lead Acid
Power Description
Load Capacity (VA)	1500 VA
Load Capacity (Watt)	1050 W
Input Voltage	220 V AC
Output Voltage	230 V AC
Physical Characteristics
Height	8.2"
Width	5.9"
Depth	16.1"
Form Factor	Tower
Weight (Approximate)	33.50 lb
Technical Information
Receptacles	8 x IEC 60320 C13
Plug/Connector Type	IEC 60320 C14
Miscellaneous
Package Contents	5SC UPS User Manual CD Intelligent Power Manager Software CD USB Cable Serial Cable (RJ45 to DB9) Important Safety Instructions 2 x C13 to C14 Jumper Cables Limited Warranty Details
Warranty
Limited Warranty	3 Year
