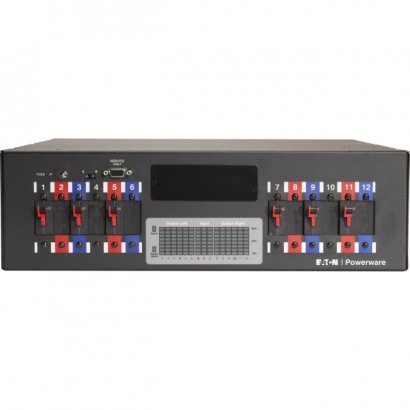

Eaton Rack Power Module (RPM) Y03100044100000

The Eaton RPM simplifies data center power distribution by delivering up to 36 kW of power in a 3U cabinet. Connect directly from a three-phase UPS (such as the Eaton BladeUPS), or other utility source, to power secondary power distribution devices such as the Eaton ePDU. Twelve pole positions distribute power to completely customizable input and output configurations and voltages.

Product Type	Power Module
Brand Name	Eaton
Manufacturer	Eaton Corporation
Product Name	Rack Power Module (RPM)
Manufacturer Part Number	Y03100044100000
Manufacturer Website Address	http://www.eaton.com/EatonCom/Markets/NorthAmerica
Height	5.2"
Width	17.4"
Depth	19.9"
Weight (Approximate)	30 lb
Current	100 A
Input Voltage Range	176 V AC to 260 V AC
Frequency	50 Hz Input
Input Voltage	208 V AC
Output Power	12 kW
Receptacles	6 x NEMA L6-20R

General Information
Product Type	Power Module
Brand Name	Eaton
Manufacturer	Eaton Corporation
Product Name	Rack Power Module (RPM)
Manufacturer Part Number	Y03100044100000
Manufacturer Website Address	http://www.eaton.com/EatonCom/Markets/NorthAmerica
Physical Characteristics
Height	5.2"
Width	17.4"
Depth	19.9"
Weight (Approximate)	30 lb
Power Description
Current	100 A
Input Voltage Range	176 V AC to 260 V AC
Frequency	50 Hz Input
Input Voltage	208 V AC
Output Power	12 kW
Technical Information
Receptacles	6 x NEMA L6-20R
