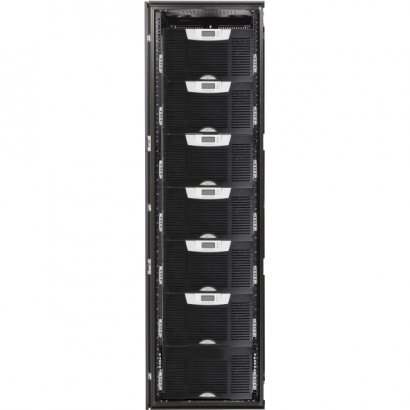

Eaton BladeUPS Power System ZP2131500XXX000

The Eaton BladeUPS is a revolutionary power quality solution that is scalable and modular. BladeUPS expands power protection from 12 to 60 kW in a single 19-inch rack while reducing energy and cooling costs.

Product Type	Dual Conversion Online UPS
Brand Name	Eaton
Manufacturer	Eaton Corporation
Product Name	BladeUPS Power System
Product Line	BladeUPS
Manufacturer Part Number	ZP2131500XXX000
Manufacturer Website Address	http://www.eaton.com/EatonCom/Markets/NorthAmerica
Batteries	Sealed, Maintenance-free Valve-regulated Lead Acid (VRLA) User Replaceable Hot-swappable
Backup/Run Time	0.07 Hour 36 kW Full Load 0.23 Hour 18 kW Half Load
Height	81"
Width	24"
Depth	42"
Form Factor	Tower
Weight (Approximate)	1316.16 lb
Receptacles	Hard Wire 4-wire 3PH + G
Plug/Connector Type	Hardwired
Interfaces/Ports	3 x RS-232 Serial
Input Voltage Range	180 V AC to 265 V AC 208 V AC Nominal
Load Capacity	36 kW
Input Voltage	220 V AC
Output Voltage	120 V AC Nominal 208 V AC Nominal 180 V AC to 228 V AC
Network Management	SNMP Manageable Included
Package Contents	BladeUPS Power System 1 x S-Series Rack on a Heavy-duty Shipping Pallet with Unloading Ramp BladeUPS Parallel bar and Wireway 3 x BladeUPS Modules Intelligent Power Software CD BladeUPS Installation and User Manual Rack Hardware Kit Front and Rear Rack Aesthetic Plates 1 x WEB/SNMP/ModBus TCP - Power Xpert UPS Card Communication Card Quick Start Guide Serial Configuration Cable USB
Limited Warranty	1 Year

General Information
Product Type	Dual Conversion Online UPS
Brand Name	Eaton
Manufacturer	Eaton Corporation
Product Name	BladeUPS Power System
Product Line	BladeUPS
Manufacturer Part Number	ZP2131500XXX000
Manufacturer Website Address	http://www.eaton.com/EatonCom/Markets/NorthAmerica
Battery Information
Batteries	Sealed, Maintenance-free Valve-regulated Lead Acid (VRLA) User Replaceable Hot-swappable
Backup/Run Time	0.07 Hour 36 kW Full Load
Backup/Run Time	0.23 Hour 18 kW Half Load
Physical Characteristics
Height	81"
Width	24"
Depth	42"
Form Factor	Tower
Weight (Approximate)	1316.16 lb
Technical Information
Receptacles	Hard Wire 4-wire 3PH + G
Plug/Connector Type	Hardwired
Interfaces/Ports	3 x RS-232 Serial
Power Description
Input Voltage Range	180 V AC to 265 V AC
Input Voltage Range	208 V AC Nominal
Load Capacity	36 kW
Input Voltage	220 V AC
Output Voltage	120 V AC Nominal
Output Voltage	208 V AC Nominal
Output Voltage	180 V AC to 228 V AC
Management
Network Management	SNMP Manageable Included
Miscellaneous
Package Contents	BladeUPS Power System 1 x S-Series Rack on a Heavy-duty Shipping Pallet with Unloading Ramp BladeUPS Parallel bar and Wireway 3 x BladeUPS Modules Intelligent Power Software CD BladeUPS Installation and User Manual Rack Hardware Kit Front and Rear Rack Aesthetic Plates 1 x WEB/SNMP/ModBus TCP - Power Xpert UPS Card Communication Card Quick Start Guide Serial Configuration Cable USB
Warranty
Limited Warranty	1 Year
