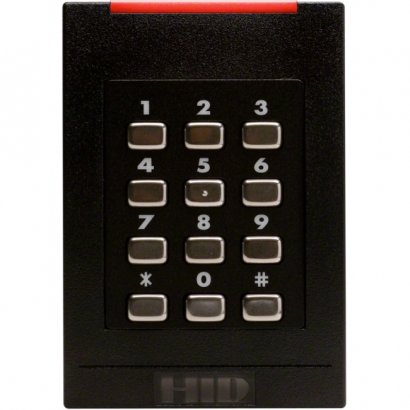

HID iCLASS RK40 Smart Card Reader 921NTNNEK00000

Using 13.56 MHz contactless smart card technology, the iCLASS® RK40 provides a powerful solution. Combine a contactless card presentation with a personal identification number (PIN) to support dual authentication of identity. Or, configure the panel for single-factor authentication, using only a card or a PIN. The PIN can be verified either at the access control panel or locally by the keypad reader. When verified locally, the PIN must be programmed into the iCLASS card. Featuring crisp architectural styling, the keypad reader has an elegantly curved faceplate. The 12-position weatherproof keypad uses discrete switches to provide positive tactile response, optionally reinforced by an audible tone. The keypad also features a waterproof silicone rubber boot, vandal-resistant metal keycaps, and backlit numbering.

Product Type	Smart Card Reader
Product Series	RK40
Brand Name	HID
Manufacturer	HID Global Corporation
Product Model	6130C
Product Name	iCLASS RK40 6130C Smart Card Reader
Product Line	iCLASS
Manufacturer Part Number	921NTNNEK00000
Manufacturer Website Address	http://www.hidcorp.com
Green Compliant	Yes
Green Compliance Certificate/Authority	RoHS WEEE
Height	4.8"
Width	3.3"
Depth	1.1"
Color	Black
Connectivity Technology	Cable
Media Supported	Smart Card
Operating Range	1.25" to 4"
Interfaces	Wiegand
Limited Warranty	Lifetime

General Information
Product Type	Smart Card Reader
Product Series	RK40
Brand Name	HID
Manufacturer	HID Global Corporation
Product Model	6130C
Product Name	iCLASS RK40 6130C Smart Card Reader
Product Line	iCLASS
Manufacturer Part Number	921NTNNEK00000
Manufacturer Website Address	http://www.hidcorp.com
Miscellaneous
Green Compliant	Yes
Green Compliance Certificate/Authority	RoHS
Green Compliance Certificate/Authority	WEEE
Physical Characteristics
Height	4.8"
Width	3.3"
Depth	1.1"
Color	Black
Technical Information
Connectivity Technology	Cable
Media Supported	Smart Card
Operating Range	1.25" to 4"
Interfaces/Ports
Interfaces	Wiegand
Warranty
Limited Warranty	Lifetime
