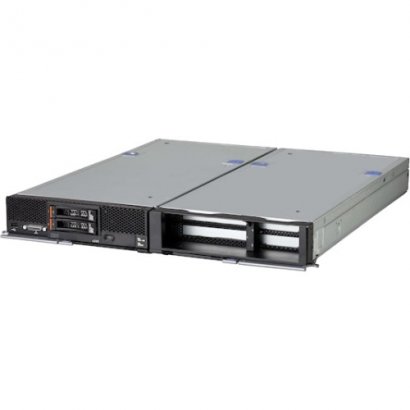

IBM Flex System PCIe Expansion Node 81Y8983

The IBM® Flex System™ PCIe Expansion Node provides the ability to attach additional PCI Express cards, such as High IOPS SSD adapters, fabric mezzanine cards, and next-generation graphics processing units (GPU), to supported IBM Flex System compute nodes. This capability is ideal for many applications that require high performance I/O, special telecommunications network interfaces, or hardware acceleration using a PCI Express GPU card. The PCIe Expansion Node supports up to four PCIe adapters and two additional Flex System I/O expansion adapters.

Product Type	Riser Card
Brand Name	IBM
Manufacturer	IBM Corporation
Product Name	Flex System PCIe Expansion Node
Manufacturer Part Number	81Y8983
Manufacturer Website Address	http://www.ibm.com
Expansion Slots	2 x PCI Express 2.0 x8 Low-profile 2 x PCI Express 2.0 x8 Full-height/Full-length
Compatibility	IBM Flex System x240 Compute Node
Package Contents	Flex System PCIe Expansion Node 2 x Riser assemblies Interposer cable assembly Double-wide shelf 2 x Auxiliary power cables (for adapters that require additional +12V power) 4 x Removable PCIe slot air flow baffles Documentation CD that contains the Installation and Service Guide Warranty information and Safety flyer and Important Notices document
Dimensions	2.2" Height x 8.6" Width x 19.3" Depth
Weight (Approximate)	11.90 lb
Limited Warranty	1 Year

General Information
Product Type	Riser Card
Brand Name	IBM
Manufacturer	IBM Corporation
Product Name	Flex System PCIe Expansion Node
Manufacturer Part Number	81Y8983
Manufacturer Website Address	http://www.ibm.com
I/O Expansions
Expansion Slots	2 x PCI Express 2.0 x8 Low-profile
Expansion Slots	2 x PCI Express 2.0 x8 Full-height/Full-length
Miscellaneous
Compatibility	IBM Flex System x240 Compute Node
Package Contents	Flex System PCIe Expansion Node 2 x Riser assemblies Interposer cable assembly Double-wide shelf 2 x Auxiliary power cables (for adapters that require additional +12V power) 4 x Removable PCIe slot air flow baffles Documentation CD that contains the Installation and Service Guide Warranty information and Safety flyer and Important Notices document
Physical Characteristics
Dimensions	2.2" Height x 8.6" Width x 19.3" Depth
Weight (Approximate)	11.90 lb
Warranty
Limited Warranty	1 Year
