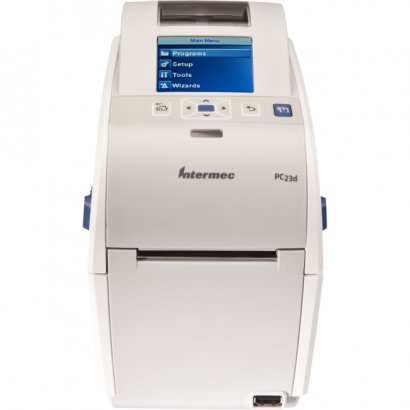

Intermec Desktop Printer PC23DA0010031

Designed to set a new standard in user friendliness and flexibility, the 2"-wide Intermec PC23d direct thermal printer provides an intuitive label-printing solution. PC23d features a multi-language LCD or Icon-graphics user interface for maximum ease of use. User-installable connectivity options and accessories ensure that PC23d will fit your business needs both today and tomorrow. Its low cost and fast operation make the PC23d the smart choice for light-duty labeling applications where users need a reliable, easy-to-use printing solution.

Product Type	Direct Thermal Printer
Product Series	PC
Brand Name	Intermec
Manufacturer	Intermec Technologies Corporation
Product Model	PC23d
Product Name	PC23d Desktop Printer
Manufacturer Part Number	PC23DA0010031
Manufacturer Website Address	http://www.intermec.com
Maximum Mono Print Speed	6 in/s
Maximum Print Resolution	300 dpi
Print Color	Monochrome
Maximum Print Width	2.10"
Recommended Use	Label Print
Green Compliant	Yes
Green Compliance Certificate/Authority	RoHS ENERGY STAR
Platform Supported	PC
Package Contents	PC23d Desktop Printer Software, Driver & Documentation CD USB Cable Power Adapter Power Cord Handy QuickGuide
Display Screen Type	LCD
USB	Yes
Maximum Label Width	2.40"
Maximum Label Length	35"
Media Type	Tag Linerless Self Adhesive Label Continuous Paper Floodcoat Non-adhesive Tag
Height	6.9"
Width	4.9"
Depth	8.5"
Form Factor	Desktop
Weight (Approximate)	3.20 lb
Input Voltage	24 V DC
Limited Warranty	1 Year
Standard Memory	128 MB

General Information
Product Type	Direct Thermal Printer
Product Series	PC
Brand Name	Intermec
Manufacturer	Intermec Technologies Corporation
Product Model	PC23d
Product Name	PC23d Desktop Printer
Manufacturer Part Number	PC23DA0010031
Manufacturer Website Address	http://www.intermec.com
Technical Information
Maximum Mono Print Speed	6 in/s
Maximum Print Resolution	300 dpi
Print Color	Monochrome
Maximum Print Width	2.10"
Recommended Use	Label Print
Miscellaneous
Green Compliant	Yes
Green Compliance Certificate/Authority	RoHS
Green Compliance Certificate/Authority	ENERGY STAR
Platform Supported	PC
Package Contents	PC23d Desktop Printer Software, Driver & Documentation CD USB Cable Power Adapter Power Cord Handy QuickGuide
Display & Graphics
Display Screen Type	LCD
Interfaces/Ports
USB	Yes
Media Types & Handling
Maximum Label Width	2.40"
Maximum Label Length	35"
Media Type	Tag
Media Type	Linerless
Media Type	Self Adhesive Label
Media Type	Continuous Paper
Media Type	Floodcoat
Media Type	Non-adhesive Tag
Physical Characteristics
Height	6.9"
Width	4.9"
Depth	8.5"
Form Factor	Desktop
Weight (Approximate)	3.20 lb
Power Description
Input Voltage	24 V DC
Warranty
Limited Warranty	1 Year
Memory
Standard Memory	128 MB
