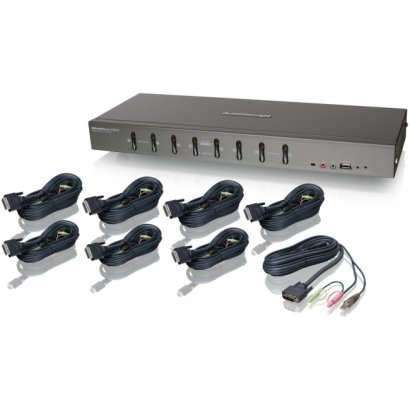

Iogear 8-Port DVI KVMP Switch Kit GCS1108KIT1

The IOGEAR 8-port USB DVI KVMP Switch Kit is a control unit that allows access and control of up to 8 DVI computers from a single USB keyboard, USB mouse. It can be cascaded to three levels - allowing up to 73 GCS1108s to control up to 512 computers - all from the original single console. In addition, GCS1108 comes with IOGEAR's Video DynaSync™ technology to optimize the display resolution. IOGEAR's DynaSync* technology reads and remembers the monitor's parameters (EDID) so there is no delay or change of video resolution when switching between, or booting computers.Switching between computers can be easily accomplished either by manually pressing the front panel push buttons, entering hotkey combinations from the keyboard, or via on-screen display (OSD) system. A convenient auto-scan feature permits automatic scanning and monitoring of activities on all connected.GCS1108KIT1 provides 2.1 stereo audio and microphone support, as well as multimedia keyboard support.

USB	Yes
DVI	Yes
VGA	Yes
Number of USB Ports	10
Number of VGA Ports	1
Number of DVI Ports	8
Product Type	KVM Switchbox
Brand Name	Iogear
Manufacturer	Iogear, Inc
Product Name	8-Port DVI KVMP Switch Kit
Manufacturer Part Number	GCS1108KIT1
Manufacturer Website Address	http://www.iogear.com
Package Contents	8-Port DVI KVMP Switch Kit 4 x 6ft Single Link DVI-D USB KVM Cable 4 x 10ft Single Link DVI-D USB KVM Cable 1 x Firmware Upgrade Cable 1 x Power Adapter 1 x Foot Pad Set (4 pcs) 1 x User Manual 1 x Rack Mounting Kit
Form Factor	Rack-mountable
KVM Technology	Digital & Analog
Number of Computers Supported	8
Number of Local Users Supported	1
Maximum Video Resolution	2048 x 1536
Graphic Mode	QXGA
Limited Warranty	3 Year

Interfaces/Ports
USB	Yes
DVI	Yes
VGA	Yes
Number of USB Ports	10
Number of VGA Ports	1
Number of DVI Ports	8
General Information
Product Type	KVM Switchbox
Brand Name	Iogear
Manufacturer	Iogear, Inc
Product Name	8-Port DVI KVMP Switch Kit
Manufacturer Part Number	GCS1108KIT1
Manufacturer Website Address	http://www.iogear.com
Miscellaneous
Package Contents	8-Port DVI KVMP Switch Kit 4 x 6ft Single Link DVI-D USB KVM Cable 4 x 10ft Single Link DVI-D USB KVM Cable 1 x Firmware Upgrade Cable 1 x Power Adapter 1 x Foot Pad Set (4 pcs) 1 x User Manual 1 x Rack Mounting Kit
Physical Characteristics
Form Factor	Rack-mountable
Technical Information
KVM Technology	Digital & Analog
Number of Computers Supported	8
Number of Local Users Supported	1
Video
Maximum Video Resolution	2048 x 1536
Graphic Mode	QXGA
Warranty
Limited Warranty	3 Year
