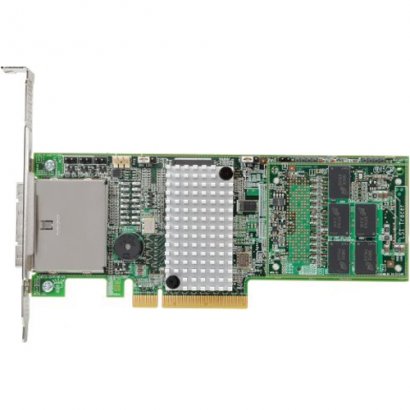

Lenovo M5120 ServeRAID SAS/SATA Controller for Lenovo System x 81Y4478

Manufacturer: Lenovo Group Limited Product ID: 81Y4478 UPC: 088343613569

List Price : $

Our Price : $

Quantity

Description & Specs

Reviews

Warranty

Description

Condition: New

The ServeRAID M5120 SAS/SATA Controller is a part of the IBM® ServeRAID M Series product family, which offers a complete server storage solution consisting of RAID controllers, cache/flash modules, energy packs, and software feature upgrades in an ultra-flexible offerings structure. These products are optimized to deliver performance demanded by the ever-growing I/O requirements of today's enterprises. The M5120 comes as a small form factor PCIe adapter, and it shares a common set of ServeRAID M Series upgrades available for the entire family, simplifying inventory management.

ServeRAID SAS/SATA Controller for Lenovo System x

Specifications

General Information
Product Type:
SAS Controller
Brand Name:
Lenovo
Manufacturer:
Lenovo Group Limited
Product Model:
M5120
Product Name:
ServeRAID M5120 SAS/SATA Controller for Lenovo System x
Product Line:
ServeRAID
Manufacturer Part Number:
81Y4478
Manufacturer Website Address:
http://www.lenovo.com/us/en/
Packaged Quantity:
1
Technical Information
RAID Supported:
Yes
RAID Levels:
0
RAID Levels:
1
RAID Levels:
5
RAID Levels:
10
RAID Levels:
50
RAID Levels:
6
RAID Levels:
60
Controller Type:
Serial ATA/600
Host Interface:
PCI Express 3.0 x8
Interfaces/Ports
Total Number of SAS Ports:
2
Number of SAS Ports (External):
2
SAS Connector Details:
2 SFF-8088
Physical Characteristics
Height:
2.7"
Width:
6.6"
Form Factor:
Plug-in Card
Thickness:
0.6"
Weight (Approximate):
2.72 oz
Miscellaneous
Platform Supported:
PC
Package Contents:
- ServeRAID M5120 SAS/SATA Controller for IBM System x
- Full-Height (3U) Bracket
- Low-Profile (2U) Bracket
- Warranty Flyer
- ServeRAID M Documentation CD
- Important Notices Flyer
Warranty
Limited Warranty:
1 Year
