Home > Computer Accessories > Motherboards

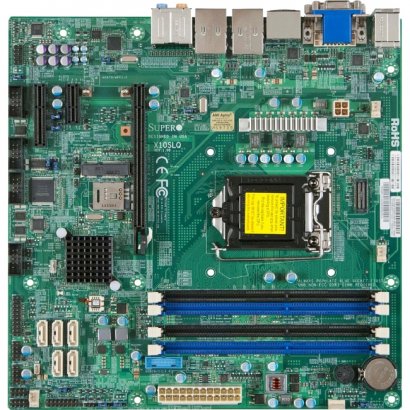

X10 Series Server Motherboard MBD-X10SLQ-O

Manufacturer: Supermicro Computer, Inc Product ID: MBD-X10SLQ-O UPC: 672042134854

Our Price : $

Quantity

Description & Specs

Reviews

Warranty

Description

Condition: New

Supermicro leverages its deep expertise in server technology to bring customers the newest generation in UP server solutions with the X10 series of serverboards. These advanced technology building blocks offer the best server performance with the latest Intel® Xeon® E3-1200 v3 CPUs, up to 4 DIMMs operating at 1600MHz, USB 3.0, onboard SAS 2.0 or SATA 3.0 (6Gbps) HDDs, onboard IPMI, and advanced options such as quad Gigabit Ethernet LAN. Power efficiency is not sacrificed due to DDR3L (1.5v) support, LV CPU SKUs, digital platinum level high-efficiency power supplies, and application optimized cooling.

X10 Series Server Motherboard

Specifications

General Information
Product Type:
Server Motherboard
Product Series:
X10
Brand Name:
Supermicro
Manufacturer:
Supermicro Computer, Inc
Product Model:
X10SLQ
Product Name:
X10 Series X10SLQ Server Motherboard
Manufacturer Part Number:
MBD-X10SLQ-O
Manufacturer Website Address:
http://www.supermicro.com
Miscellaneous
Green Compliant:
Yes
Green Compliance Certificate/Authority:
RoHS-6
Compatibility:
3U Chassis:
- CSE-732D2-903B
- CSE-732D4-903B
Mid-Tower:
- CSE-731D-300B
- CSE-731i-300B
- CSE-732D2-500B
- CSE-732D2-865B
- CSE-732D4-500B
- CSE-732D4-865B
- CSE-732D4F-500B
- CSE-732D4F-865B
- CSE-732D4F-903B
- CSE-732i-500B
- CSE-732i-865B
Processor & Chipset
Chipset Manufacturer:
Intel
Chipset Model:
Q87 Express
Processor Socket:
Socket H3 LGA-1150
Processor Supported:
Core i7
Processor Supported:
Core i5
Processor Supported:
Core i3
Processor Supported:
Pentium
Processor Supported:
Celeron
Total Processor Supported:
1
Memory
Number of Memory Slots:
4
Memory Form Factor:
DIMM
Memory Form Factor:
UDIMM
Memory Speed Supported:
1.60 GHz
Memory Speed Supported:
1.33 GHz
Memory Speed Supported:
1.07 GHz
Memory Technology:
DDR3 SDRAM
Maximum Memory:
32 GB
Video
Graphics Controller Manufacturer:
Intel
Graphics Controller Model:
HD 4600
Onboard Video:
On-board Video Chipset
Audio
Audio Channels:
7.1
Network & Communication
Gigabit Ethernet:
Yes
Onboard Interfaces
Number of SATA Interfaces:
6
Total Number of Onboard USB Ports:
6
Number of Onboard USB 3.0 Ports:
2
Number of mSATA Interfaces:
1
I/O Expansions
Number of PCI Express x1 Slots:
1
Number of Total Expansion Slots:
4
Number of PCI Express x4 Slots:
1
Number of PCI Express x16 Slots:
1
Total Number of PCI Express Slots:
3
I/O Controller
RAID Supported:
Yes
RAID Levels:
0
RAID Levels:
1
RAID Levels:
5
RAID Levels:
1+0
Controller Type:
Serial ATA/600
Interfaces/Ports
HDMI:
Yes
DVI:
Yes
VGA:
Yes
DisplayPort:
Yes
Total Number of USB Ports:
6
Number of USB 3.0 Ports:
2
Physical Characteristics
Width:
9.6"
Depth:
9.6"
Form Factor:
Micro ATX

X10 Series Server Motherboard MBD-X10SLQ-O
