Description
Condition:
New

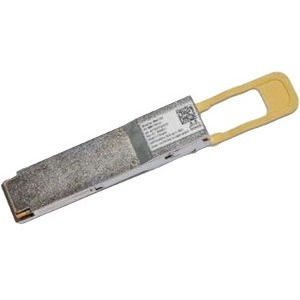

Mellanox® MMA1T00-VS transceiver is a 4-channel, pluggable, QSFP56, optical transceiver designed for use in 200GbE Ethernet applications. This module incorporates Mellanox integrated circuit technology in order to provide high performance. The transceiver operates over 4-lane parallel multi-mode fiber (MMF), using a nominal wavelength of 850nm, and is QSFP56 MSA compliant.The transceiver has a standard SFF-8665 compliant QSFP56 connector on the electrical side towards the host system. The optical interface is composed of four optical channels/fibers in each direction, intended for a parallel multi-mode optical cable via a standard MPO-12 UPC connector. Each channel/fiber operates at signaling rates up to 26.5625 GBd. Rigorous production testing ensures the best out-of-the-box installation experience, performance and durability.The MMA1T00-VS transceiver has Digital Diagnostic Monitoring functions for supply voltage, temperature, laser bias current, optical transmit and receive levels with associated warning and alarm thresholds.The MMA1T00-VS transceiver will work with a fiber plant as specified in the QSFP MSA standard.
| Interfaces/Ports Details | 1 x MPO 200GBase-SR4 Network | | Connector Type | MPO | | Total Number of Ports | 1 | | Product Type | QSFP56 | | Manufacturer Part Number | MMA1T00-VS | | Manufacturer Website Address | http://www.nvidia.com | | Manufacturer | NVIDIA Corporation | | Product Model | MMA1T00-VS | | Product Name | 200GbE QSFP56 MMF Transceiver | | Product Line | LinkX | | Brand Name | Mellanox | | Network Technology | 200GBase-SR4 | | Fiber Optic Cable Standard | 850 nm | | Ethernet Technology | 200 Gigabit Ethernet | | Media Type Supported | Optical Fiber | | Fiber Mode Supported | Multi-mode | | Compatibility | MSA Compliant | | Environmentally Friendly | Yes | | Environmental Certification | RoHS | | Form Factor | Hot-pluggable | | Application/Usage | Data Networking Optical Network | | Limited Warranty | 1 Year |
Specifications
| Interfaces/Ports | | Interfaces/Ports Details | 1 x MPO 200GBase-SR4 Network | | Connector Type | MPO | | Total Number of Ports | 1 | | General Information | | Product Type | QSFP56 | | Manufacturer Part Number | MMA1T00-VS | | Manufacturer Website Address | http://www.nvidia.com | | Manufacturer | NVIDIA Corporation | | Product Model | MMA1T00-VS | | Product Name | 200GbE QSFP56 MMF Transceiver | | Product Line | LinkX | | Brand Name | Mellanox | | Media & Performance | | Network Technology | 200GBase-SR4 | | Fiber Optic Cable Standard | 850 nm | | Ethernet Technology | 200 Gigabit Ethernet | | Media Type Supported | Optical Fiber | | Fiber Mode Supported | Multi-mode | | Miscellaneous | | Compatibility | MSA Compliant | | Environmentally Friendly | Yes | | Environmental Certification | RoHS | | Physical Characteristics | | Form Factor | Hot-pluggable | | Technical Information | | Application/Usage | Data Networking | | Application/Usage | Optical Network | | Warranty | | Limited Warranty | 1 Year |
