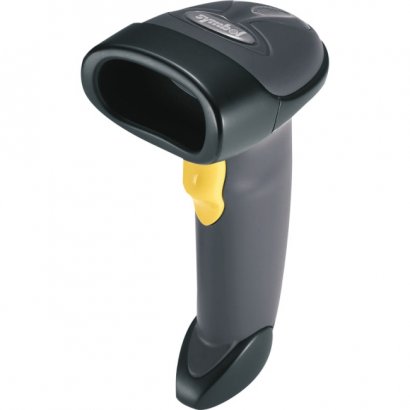

Motorola General Purpose Bar Code Scanner LS2208-7AZU0100ZNA

The affordable LS2208 handheld bar code scanner provides fast, reliable scanning in an ergonomic, lightweight form. The wide working range -from near-contact to 17 inches - makes this device ideal for retail, hospital, education or government settings. Multiple on-board interfaces ensure integration with a variety of host systems

Product Type	Handheld Barcode Scanner
Brand Name	Motorola
Manufacturer	Motorola, Inc
Product Model	LS2208
Product Name	LS2208 General Purpose Bar Code Scanner
Product Line	Symbol
Manufacturer Part Number	LS2208-7AZU0100ZNA
Manufacturer Website Address	http://www.motorola.com/us
Green Compliant	Yes
Green Compliance Certificate/Authority	RoHS
Bar Code Dimension	1D
Scan Pattern	Bi-directional
Scan Rate	100 scan/s
Connectivity Technology	Cable
Light Source	Laser
Bar Code Symbology Supported	UPC/EAN UPC/EAN with Supplementals UPC/EAN 128 Code 39 Code 39 Full ASCII Code 39 TriOptic Code 128 Code 128 Full ASCII Codabar Interleaved 2 of 5 Discrete 2 of 5 Code 93 MSI Code 11 IATA GS1 DataBar (Formerly RSS) Variants Chinese 2 of 5
Height	6"
Width	2.5"
Depth	3.3"
Color	Twilight Black
Weight (Approximate)	5.15 oz
Limited Warranty	5 Year
Host Interface	USB

General Information
Product Type	Handheld Barcode Scanner
Brand Name	Motorola
Manufacturer	Motorola, Inc
Product Model	LS2208
Product Name	LS2208 General Purpose Bar Code Scanner
Product Line	Symbol
Manufacturer Part Number	LS2208-7AZU0100ZNA
Manufacturer Website Address	http://www.motorola.com/us
Miscellaneous
Green Compliant	Yes
Green Compliance Certificate/Authority	RoHS
Technical Information
Bar Code Dimension	1D
Scan Pattern	Bi-directional
Scan Rate	100 scan/s
Connectivity Technology	Cable
Light Source	Laser
Bar Code Symbology Supported	UPC/EAN UPC/EAN with Supplementals UPC/EAN 128 Code 39 Code 39 Full ASCII Code 39 TriOptic Code 128 Code 128 Full ASCII Codabar Interleaved 2 of 5 Discrete 2 of 5 Code 93 MSI Code 11 IATA GS1 DataBar (Formerly RSS) Variants Chinese 2 of 5
Physical Characteristics
Height	6"
Width	2.5"
Depth	3.3"
Color	Twilight Black
Weight (Approximate)	5.15 oz
Warranty
Limited Warranty	5 Year
Interfaces/Ports
Host Interface	USB
