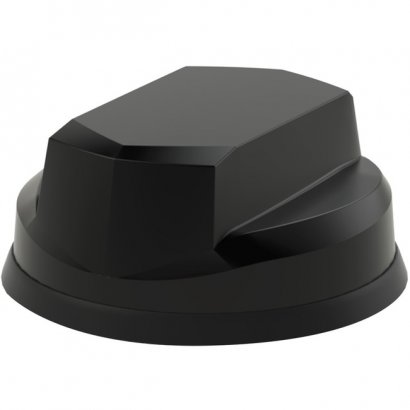

Panorama Antennas Antenna LG-IN2458

The LG-IN2458 is a high performance 2x2 MiMo LTE, 6x6 MiMo Dual Band WiFi and GPS/GNSS active antenna covering 617-960/1710-6000MHz. Low profile antenna with 9 functions in 1 2x2 MiMo 4G/5G LTE cellular, 6x6 MiMo Dual Band WiFi and GPS/GNSS in one housing Kits with extension cables available for a range of LTE routers Suitable for Cradlepoint COR IBR900 Series Routers The LG-IN2458 range has been designed to provide 2x2 4G/5G MiMo performance from 617-960/1710-6000MHz in a robust low profile package. The flexible platform allows the main elements to be combined with a number of other functions including GPS/GNSS and 4x4 MiMo WiFi 2.4/5.0GHz. The antenna is designed to be panel mounted and can be fitted on a conductive or non- conductive panel. Supplied with integrated flame retardant RG174 cables (Compliant to UNECE 118.01 and EN45545-2) and a halogen free flame retardant radome the antenna is suitable for many environments and applications. The antenna is available with a black or white radome which meets IK10 for vandal resistance and IP69K for ingress protection.
