Panorama Antennas Sharkee Antenna SH-IN2440

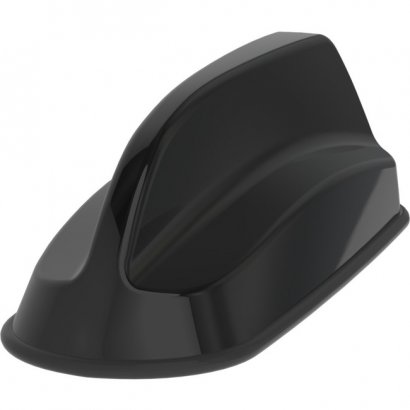

A one size fits all, sharkfin style solution for MiMo Cellular, MiMo WiFi and GPS applications requiring VHF or UHF capability. OEM shark fin styling GPS/GNSS, 2x2 MiMo 2G/3G/4G & 3.8GHz 5G LTE cellular & 2x2 MiMo 2.4 / 5.8GHz in one housing Available in Black or White The GPSD 'MiMo Sharkee™' has a compact OEM style shark fin housing that contains 2x2 MiMo antenna function for 4G/3G/2G & 3.8GHz 5G LTE, 2x2 MiMo antenna function for 2.4/5.8GHz WiFi and an active antenna for GPS/GLONASS/Galileo/Beidou with 26dB gain LNA. In addition, there is an integral stud mount for an external antenna whip that can support a range of VHF, UHF or 700/800MHz antennas. The GPSD shark fin style design provides multiple antenna functions while remaining discreet and is suitable for public safety (overt/covert), industrial and transport applications where a cost effective, efficient and robust antenna is essential. Requiring only a single hole mounting, the GPSD reduces vehicle damage, installation time & cost and visual impact whilst protecting a vehicle's resale value. IN2440 also contains a complete set of 5 extension cables; two 5m low loss double sheilded cables terminating in SMA plugs for cellular / LTE, two 5m ultra-low loss double shielded cables terminating in reverse polarity SMA plugs for WiFi and a 5m CS23 cable terminating in an SMA plug for GPS/GNSS.

Sharkee Antenna
