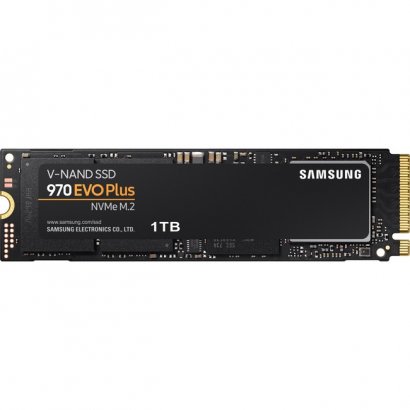

Samsung 970 EVO Plus NVMe M.2 SSD 1TB MZ-V7S1T0B/AM

Always Evolving SSD The ultimate in performance, upgraded. Faster than the 970 EVO, the 970 EVO Plus is powered by the latest V-NAND technology and firmware optimization. It maximizes the potential of NVMe® bandwidth for unbeatable computing. Comes in capacities of up to 1TB, with reliability of up to 600 TBW. Level up Performance The 970 EVO Plus reaches sequential read/write speeds up to 3,500/3,300 MB/s, up to 53% faster than the 970 EVO. Powered by the latest V-NAND technology-which brings greater NAND performance and higher power efficiency-along with optimized firmware, a proven Phoenix controller, and Intelligent TurboWrite boost speed. Design Flexibility The next advancement in NVMe® SSDs. The 970 EVO Plus fits up to 1TB onto the compact M.2 (2280) form factor, greatly expanding storage capacity and saving space for other components. Samsung's innovative technology empowers you with the capacity to do more and accomplish more. Exceptional Endurance The new standard in sustainable performance. Get up to 600 TBW with a 5-year limited warranty for lasting performance. The 970 EVO Plus provides exceptional endurance powered by the latest V-NAND technology and Samsung's reputation for quality.Unparalleled Reliability Achieve a new level of drive confidence. Samsung's advanced nickel-coated controller and heat spreader on the 970 EVO Plus enable superior heat dissipation. The Dynamic Thermal Guard automatically monitors and maintains optimal operating temperatures to minimize performance drops. Samsung MagicianAdvanced drive management made simple. The Samsung Magician software will help you keep an eye on your drive. A suite of user-friendly tools helps keep your drive up to date, monitor drive health and speed, and even boost performance.

Drive Interface	PCI Express NVMe
Drive Interface Standard	PCI Express NVMe 3.0 x4
Maximum Read Transfer Rate	3500 MB/s
Maximum Write Transfer Rate	3300 MB/s
Random 4KB Read	600000IOPS
Random 4KB Write	600000IOPS
Endurance (TBW)	600 TB
Product Type	Solid State Drive
Manufacturer Part Number	MZ-V7S1T0B/AM
Manufacturer Website Address	http://www.samsung.com/us
Manufacturer	Samsung
Product Name	970 EVO Plus NVMe M.2 SSD 1TB
Package Type	Retail
Product Series	970 EVO Plus
Brand Name	Samsung
Country of Origin	China
Environmentally Friendly	Yes
Environmental Certification	RoHS WEEE
Operating System Compatibility	Windows 10
Wireless LAN	No
Weight (Approximate)	0.30 oz
Drive Type	Internal
Form Factor	M.2 2280
Height	0.9"
Width	3.2"
Depth	0.1"
Storage Capacity	1 TB
Encryption Standard	256-bit
Limited Warranty	5 Year

Interfaces/Ports
Drive Interface	PCI Express NVMe
Drive Interface Standard	PCI Express NVMe 3.0 x4
Drive Performance
Maximum Read Transfer Rate	3500 MB/s
Maximum Write Transfer Rate	3300 MB/s
Random 4KB Read	600000IOPS
Random 4KB Write	600000IOPS
Endurance (TBW)	600 TB
General Information
Product Type	Solid State Drive
Manufacturer Part Number	MZ-V7S1T0B/AM
Manufacturer Website Address	http://www.samsung.com/us
Manufacturer	Samsung
Product Name	970 EVO Plus NVMe M.2 SSD 1TB
Package Type	Retail
Product Series	970 EVO Plus
Brand Name	Samsung
Miscellaneous
Country of Origin	China
Environmentally Friendly	Yes
Environmental Certification	RoHS
Environmental Certification	WEEE
Operating System Compatibility	Windows 10
Network & Communication
Wireless LAN	No
Physical Characteristics
Weight (Approximate)	0.30 oz
Drive Type	Internal
Form Factor	M.2 2280
Height	0.9"
Width	3.2"
Depth	0.1"
Technical Information
Storage Capacity	1 TB
Encryption Standard	256-bit
Warranty
Limited Warranty	5 Year
