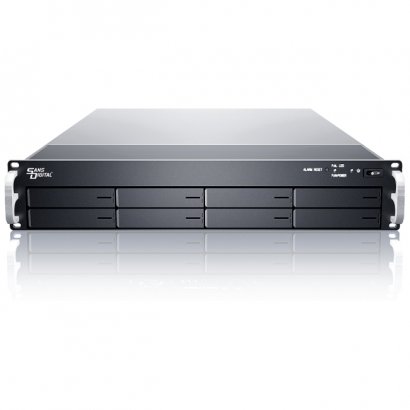

Sans Digital EliteSTOR DAS Array KT-ES208X6+B

The EliteSTOR ES208X6+B is a 2U SAS 6G JBOD rackmount for high capacity storage solution. Utilizing the latest 6G SAS expander technology, the ES208X6+B provides up to 24 Gb/s or 2400MB/s of data bandwidth to fulfill the most demanding application. The ES208X6+B supports SATA or SAS 6Gbps hard drives or SSD and is backward compatible to 3Gbps SAS & SATA hard drives. By utilizing the latest SAS expander technology, the ES208X6+B supports up to 8 SAS or SATA drives using only one mini-SAS cable. A built-in SAS expansion port enables the system to connect up to 5 units or 120 HDD drives daisy-chained together. With a high performance RAID controller card such as Areca ARC-1880X or LSI 9280-8E, the ES208X6+B is capable of delivering over 1700MB/s in read and 1500MB/s in write performance, doubling the existing 3G SAS expander bandwidth. System status information is provided by the LED, including hard drives, power supply and cooling fan status. All necessary hardware comes standard including mini-SAS cable, hard drives tray modules and built-in mounting rail. The ES208X6+B is an ideal storage expansion solution for servers or high performance video editing workstations.

Product Type	DAS Array
Brand Name	Sans Digital
Manufacturer	Sans Digital
Product Model	ES208X6+B
Product Name	EliteSTOR ES208X6+B DAS Array
Product Line	EliteSTOR
Manufacturer Part Number	KT-ES208X6+B
Manufacturer Website Address	http://www.sansdigital.com
Green Compliant	Yes
Green Compliance Certificate/Authority	RoHS
Package Contents	EliteSTOR ES208X6+B DAS Array Mini-SAS Cable
Number of Total Expansion Bays	8
Number of 3.5" Bays	8
Number of 5.25" Bays	No
Number of 2.5" Bays	No
Number of 2.5"/3.5" Bays	No
Total Hard Drive Capacity Supported	24 TB
Total Solid State Drive Capacity Supported	24 TB
Number of Hard Drives Supported	8
Number of Hard Drives Installed	No
Number of Solid State Drive Supported	8
Number of Solid State Drive Installed	No
Drive Interface	6Gb/s SAS Serial ATA/600
Host Interface	Mini-SAS 6Gb/s SAS
Height	3.5"
Width	19"
Depth	23"
Rack Height	2U
Form Factor	Rack-mountable
Weight (Approximate)	35 lb
Limited Warranty	3 Year

General Information
Product Type	DAS Array
Brand Name	Sans Digital
Manufacturer	Sans Digital
Product Model	ES208X6+B
Product Name	EliteSTOR ES208X6+B DAS Array
Product Line	EliteSTOR
Manufacturer Part Number	KT-ES208X6+B
Manufacturer Website Address	http://www.sansdigital.com
Miscellaneous
Green Compliant	Yes
Green Compliance Certificate/Authority	RoHS
Package Contents	EliteSTOR ES208X6+B DAS Array Mini-SAS Cable
I/O Expansions
Number of Total Expansion Bays	8
Number of 3.5" Bays	8
Number of 5.25" Bays	No
Number of 2.5" Bays	No
Number of 2.5"/3.5" Bays	No
Storage
Total Hard Drive Capacity Supported	24 TB
Total Solid State Drive Capacity Supported	24 TB
Number of Hard Drives Supported	8
Number of Hard Drives Installed	No
Number of Solid State Drive Supported	8
Number of Solid State Drive Installed	No
Interfaces/Ports
Drive Interface	6Gb/s SAS
Drive Interface	Serial ATA/600
Host Interface	Mini-SAS
Host Interface	6Gb/s SAS
Physical Characteristics
Height	3.5"
Width	19"
Depth	23"
Rack Height	2U
Form Factor	Rack-mountable
Weight (Approximate)	35 lb
Warranty
Limited Warranty	3 Year
