Description
Condition:
New

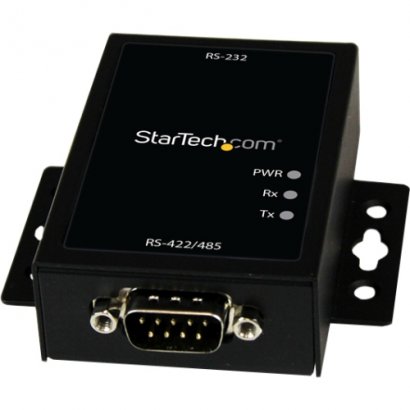

The IC232485S Industrial RS232 to RS-422/485 Serial Converter is a bi-directional adapter that lets you adapt an RS232 data signal to either RS485 (2 or 4-wire) or RS422 and vice-versa, with support for baud rates up to 921.6 Kbps. Ideal for industrial environments, the serial port converter provides 15KV ESD protection on all signal pins to protect costly and often sensitive control equipment against electrical damage. The serial converter also features a sturdy wall-mountable metal housing with Power, Tx and Rx LED indicators for simple status monitoring. The adapter supports auto baud rate detection as well as RS-422 and RS485 mode detection, with an integrated dip switch for manual mode selection if needed, and supports connection distances of up to 4000ft (1200m). Backed by a 2-year StarTech.com warranty and free lifetime technical support.
| Product Type |
Device Server
|
| Brand Name |
StarTech.com
|
| Manufacturer |
StarTech.com
|
| Product Name |
Industrial RS232 to RS422/485 Serial Port Converter with 15KV ESD Protection
|
| Manufacturer Part Number |
IC232485S
|
| Manufacturer Website Address |
http://www.startech.com
|
| Green Compliant |
Yes
|
| Green Compliance Certificate/Authority |
RoHS
|
| Package Contents |
- Industrial RS232 to RS422/485 Serial Port Converter with 15KV ESD Protection
- Power Adapter
- 1 x Universal Power Adapter (NA/EU/UK)
- 1 x Instruction Manual
|
| Wireless LAN |
No
|
| USB |
No
|
| Network (RJ-45) |
No
|
| Serial Port |
Yes
|
| Parallel Port |
No
|
| Number of Serial Ports |
2
|
| PoE (RJ-45) Port |
No
|
| Centronics Port |
No
|
| Height |
0.9"
|
| Width |
2.3"
|
| Depth |
4.6"
|
| Form Factor |
Wall Mountable
|
| Weight (Approximate) |
5.30 oz
|
| Limited Warranty |
2 Year
|
Specifications
| General Information |
| Product Type |
Device Server |
| Brand Name |
StarTech.com |
| Manufacturer |
StarTech.com |
| Product Name |
Industrial RS232 to RS422/485 Serial Port Converter with 15KV ESD Protection |
| Manufacturer Part Number |
IC232485S |
| Manufacturer Website Address |
http://www.startech.com |
| Miscellaneous |
| Green Compliant |
Yes |
| Green Compliance Certificate/Authority |
RoHS |
| Package Contents |
- Industrial RS232 to RS422/485 Serial Port Converter with 15KV ESD Protection
- Power Adapter
- 1 x Universal Power Adapter (NA/EU/UK)
- 1 x Instruction Manual
|
| Wireless Specifications |
| Wireless LAN |
No |
| Interfaces/Ports |
| USB |
No |
| Network (RJ-45) |
No |
| Serial Port |
Yes |
| Parallel Port |
No |
| Number of Serial Ports |
2 |
| PoE (RJ-45) Port |
No |
| Centronics Port |
No |
| Physical Characteristics |
| Height |
0.9" |
| Width |
2.3" |
| Depth |
4.6" |
| Form Factor |
Wall Mountable |
| Weight (Approximate) |
5.30 oz |
| Warranty |
| Limited Warranty |
2 Year |
