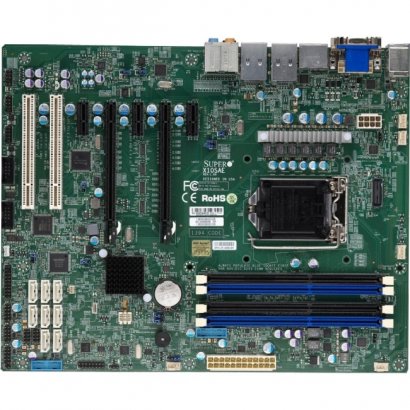

Supermicro X10 Series Server Motherboard MBD-X10SAE-O

Xeon® E3-1200 v3 Family Boards / Socket H3 (LGA 1150)Supermicro leverages its deep expertise in server technology to bring customers the newest generation in UP server solutions with the X10 series of serverboards. These advanced technology building blocks offer the best server performance with the latest Intel® Xeon® E3-1200 v3 CPUs, up to 4 DIMMs operating at 1600MHz, USB 3.0, onboard SAS 2.0 or SATA 3.0 (6Gbps) HDDs, onboard IPMI, and advanced options such as quad Gigabit Ethernet LAN. Power efficiency is not sacrificed due to DDR3L (1.5v) support, LV CPU SKUs, digital platinum level high-efficiency power supplies, and application optimized cooling.

Product Type	Server Motherboard
Product Series	X10
Brand Name	Supermicro
Manufacturer	Supermicro Computer, Inc
Product Model	X10SAE
Product Name	X10 Series X10SAE Server Motherboard
Manufacturer Part Number	MBD-X10SAE-O
Manufacturer Website Address	http://www.supermicro.com
Green Compliant	Yes
Green Compliance Certificate/Authority	RoHS-6
64-bit Processing	Yes
Chipset Manufacturer	Intel
Chipset Model	C226
Processor Socket	Socket H3 LGA-1150
Processor Supported	Xeon Core i7 Core i5 Core i3
Total Processor Supported	1
Number of Memory Slots	4
Memory Form Factor	DIMM UDIMM
Memory Technology	DDR3 SDRAM
Maximum Memory	32 GB
Number of PCI Slots	2
Number of Total Expansion Slots	7
Number of PCI Express x16 Slots	2
PCI Express Standard	PCI Express 3.0 PCI Express 2.0
Total Number of PCI Express Slots	5
Audio Channels	7.1
Gigabit Ethernet	Yes
Number of SATA Interfaces	8
Total Number of Onboard USB Ports	10
Number of Onboard USB 2.0 Ports	6
Total Number of Onboard FireWire/i.LINK Ports	2
RAID Supported	Yes
Controller Type	Serial ATA/600
HDMI	Yes
DVI	Yes
Number of Network (RJ-45) Ports	2
Network (RJ-45)	Yes
DisplayPort	Yes
Total Number of USB Ports	6
Number of USB 3.0 Ports	2
PS/2 Port	Yes
Number of PS/2 Ports	1
Width	12"
Depth	9.6"
Form Factor	ATX

General Information
Product Type	Server Motherboard
Product Series	X10
Brand Name	Supermicro
Manufacturer	Supermicro Computer, Inc
Product Model	X10SAE
Product Name	X10 Series X10SAE Server Motherboard
Manufacturer Part Number	MBD-X10SAE-O
Manufacturer Website Address	http://www.supermicro.com
Miscellaneous
Green Compliant	Yes
Green Compliance Certificate/Authority	RoHS-6
Processor & Chipset
64-bit Processing	Yes
Chipset Manufacturer	Intel
Chipset Model	C226
Processor Socket	Socket H3 LGA-1150
Processor Supported	Xeon
Processor Supported	Core i7
Processor Supported	Core i5
Processor Supported	Core i3
Total Processor Supported	1
Memory
Number of Memory Slots	4
Memory Form Factor	DIMM
Memory Form Factor	UDIMM
Memory Technology	DDR3 SDRAM
Maximum Memory	32 GB
I/O Expansions
Number of PCI Slots	2
Number of Total Expansion Slots	7
Number of PCI Express x16 Slots	2
PCI Express Standard	PCI Express 3.0
PCI Express Standard	PCI Express 2.0
Total Number of PCI Express Slots	5
Audio
Audio Channels	7.1
Network & Communication
Gigabit Ethernet	Yes
Onboard Interfaces
Number of SATA Interfaces	8
Total Number of Onboard USB Ports	10
Number of Onboard USB 2.0 Ports	6
Total Number of Onboard FireWire/i.LINK Ports	2
I/O Controller
RAID Supported	Yes
Controller Type	Serial ATA/600
Interfaces/Ports
HDMI	Yes
DVI	Yes
Number of Network (RJ-45) Ports	2
Network (RJ-45)	Yes
DisplayPort	Yes
Total Number of USB Ports	6
Number of USB 3.0 Ports	2
PS/2 Port	Yes
Number of PS/2 Ports	1
Physical Characteristics
Width	12"
Depth	9.6"
Form Factor	ATX
