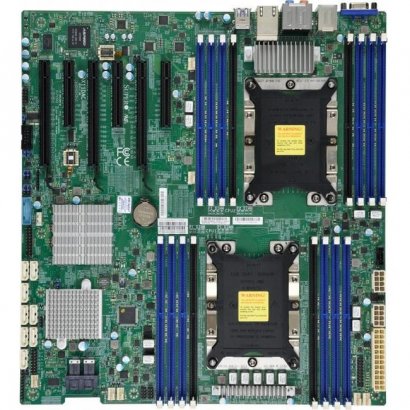

Supermicro Workstation Motherboard MBD-X11DAC-O

Manufacturer: Supermicro Computer, Inc Product ID: MBD-X11DAC-O UPC: 672042318537

Our Price : $

Price 959.33

Quantity

Buy Now

Description & Specs

Reviews

Warranty

Description

Condition: New

DP Xeon® Motherboards - Socket P (LGA 3647) BOARDS supporting Intel® Xeon® Scalable Processors / Socket P (LGA 3647)Supermicro's new generation X11 DP serverboards offer the highest levels of performance, efficiency, security and scalability in the industry with up to: 3TB DDR4 2666MHz in 24 DIMM slots per node, 7 PCI-E slots, SAS 3.0/SATA 3.0/NVMe hot-swap HDD/SSD support, 10GBase-T/10G SFP+/56Gbps FDR InfiniBand networking options, SATA Disk-on-Module (DOM), and IPMI 2.0 plus KVM with dedicated LAN. The SuperWorkstation boards offer in addition 7.1 HD Audio, Thunderbolt AOC header, and up to 11 USB ports.

Workstation Motherboard

Specifications

General Information
Product Type:
Workstation Motherboard
Brand Name:
Supermicro
Manufacturer:
Supermicro Computer, Inc
Product Model:
X11DAC
Product Name:
X11DAC Workstation Motherboard
Package Type:
Retail
Manufacturer Part Number:
MBD-X11DAC-O
Manufacturer Website Address:
http://www.supermicro.com
Processor & Chipset
Chipset Manufacturer:
Intel
Processor Socket:
Socket P LGA-3647
Processor Supported:
Xeon Gold
Processor Supported:
Xeon Silver
Processor Supported:
Xeon Bronze
Processor Supported:
Xeon Platinum
Total Processor Supported:
2
Memory
Number of Memory Slots:
16
Memory Form Factor:
RDIMM
Memory Form Factor:
DIMM
Memory Form Factor:
LRDIMM
Memory Speed Supported:
2.67 GHz
Memory Speed Supported:
2.40 GHz
Memory Speed Supported:
2.13 GHz
Memory Technology:
DDR4 SDRAM
Maximum Memory:
2 TB
Video
Graphics Controller Manufacturer:
ASPEED
Graphics Controller Model:
AST2500
Onboard Video:
On-board Video Chipset
Audio
Audio Channels:
7.1
Network & Communication
Gigabit Ethernet:
Yes
Onboard Interfaces
Number of SATA Interfaces:
8
Number of SAS Interfaces:
8
Total Number of Onboard USB Ports:
2
Number of Onboard USB 3.0 Ports:
2
I/O Controller
RAID Supported:
Yes
RAID Levels:
10
RAID Levels:
5
RAID Levels:
1
RAID Levels:
0
Controller Type:
Serial ATA/600
Controller Type:
12Gb/s SAS
I/O Expansions
Number of Total Expansion Slots:
6
Number of PCI Express x8 Slots:
3
Number of PCI Express x16 Slots:
3
Total Number of PCI Express Slots:
6
Interfaces/Ports
VGA:
Yes
Total Number of USB Ports:
4
Number of USB 3.0 Ports:
4
Physical Characteristics
Width:
13"
Depth:
12"
Form Factor:
Extended ATX
Miscellaneous
Compatibility:
Chassis:
- SC732D4-903B
- SC732D3-1200B
- SC743AC-1200B-SQ

Supermicro Workstation Motherboard MBD-X11DAC-O
