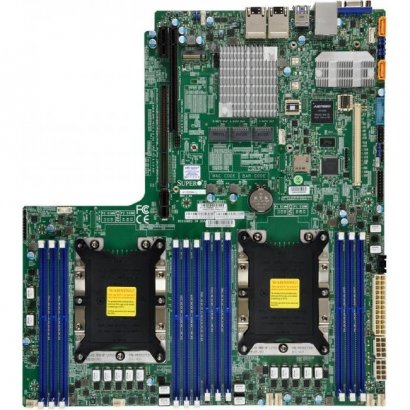

Supermicro Server Motherboard MBD-X11DDW-L-O

Manufacturer: Supermicro Computer, Inc Product ID: MBD-X11DDW-L-O UPC: 672042262649

Our Price : $

Price 712.64

Quantity

Buy Now

Description & Specs

Reviews

Warranty

Description

Condition: New

DP Xeon® Motherboards - Socket P (LGA 3647) BOARDS supporting Intel® Xeon® Scalable Processors / Socket P (LGA 3647)Supermicro's new generation X11 DP serverboards offer the highest levels of performance, efficiency, security and scalability in the industry with up to: 3TB DDR4 2666MHz in 24 DIMM slots per node, 7 PCI-E slots, SAS 3.0/SATA 3.0/NVMe hot-swap HDD/SSD support, 10GBase-T/10G SFP+/56Gbps FDR InfiniBand networking options, SATA Disk-on-Module (DOM), and IPMI 2.0 plus KVM with dedicated LAN. The SuperWorkstation boards offer in addition 7.1 HD Audio, Thunderbolt AOC header, and up to 11 USB ports.

Server Motherboard

Specifications

General Information
Product Type:
Server Motherboard
Brand Name:
Supermicro
Manufacturer:
Supermicro Computer, Inc
Product Model:
X11DDW-L
Product Name:
X11DDW-L Server Motherboard
Package Type:
Retail
Manufacturer Part Number:
MBD-X11DDW-L-O
Manufacturer Website Address:
http://www.supermicro.com
Packaged Quantity:
1
Processor & Chipset
Chipset Manufacturer:
Intel
Processor Socket:
Socket P LGA-3647
Processor Supported:
Xeon
Total Processor Supported:
2
Memory
Number of Memory Slots:
12
Memory Form Factor:
RDIMM
Memory Form Factor:
DIMM
Memory Form Factor:
LRDIMM
Memory Speed Supported:
2.67 GHz
Memory Speed Supported:
2.40 GHz
Memory Speed Supported:
2.13 GHz
Memory Technology:
DDR4 SDRAM
Maximum Memory:
1.50 TB
Video
Graphics Controller Manufacturer:
ASPEED
Graphics Controller Model:
AST2500
Onboard Video:
On-board Video Chipset
Audio
Audio Channels:
7.1
Network & Communication
Gigabit Ethernet:
Yes
Onboard Interfaces
Number of SATA Interfaces:
14
Total Number of Onboard USB Ports:
2
Number of Onboard USB 3.0 Ports:
2
Number of M.2 Interfaces:
1
I/O Controller
RAID Supported:
Yes
RAID Levels:
10
RAID Levels:
5
RAID Levels:
1
RAID Levels:
0
Controller Type:
Serial ATA/600
I/O Expansions
Number of Total Expansion Slots:
3
Number of PCI Express x16 Slots:
2
Total Number of PCI Express Slots:
3
Number of PCI Express x32 Slots:
1
Interfaces/Ports
VGA:
Yes
Total Number of USB Ports:
4
Number of USB 3.0 Ports:
4
Physical Characteristics
Width:
13.4"
Depth:
12.3"
Form Factor:
Proprietary Form Factor
Miscellaneous
Compatibility:
SuperServer:
- SYS-1029P-WT
- SYS-1029P-WTR
- SYS-6019P-WT
- SYS-6019P-WTR
- SYS-6019P-WT8
- SYS-6029P-WTR
Chassis:
- SC815TQC-R706WB2
- SC815TQC-605WB
- SC116AC2-R706WB2
- SC113AC2-R706WB2
- SC113AC2-605WB
- SC825TQC-R1K03WB
- SC826BAC4-R1K23WB
