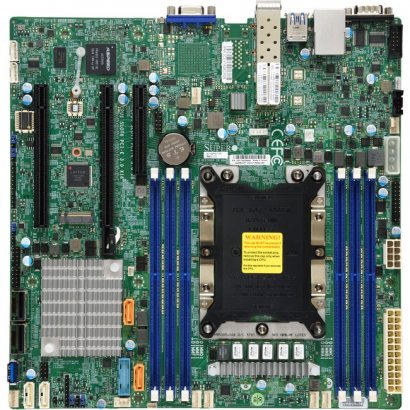

Supermicro Server Motherboard MBD-X11SPM-TPF-O

Manufacturer: Supermicro Computer, Inc Product ID: MBD-X11SPM-TPF-O UPC: 672042282630

Our Price : $

Price 632.68

Quantity

Buy Now

Description & Specs

Reviews

Warranty

Description

Condition: New

UP Xeon® Motherboards - Socket P (LGA 3647) BOARDS supporting Intel® Xeon® Scalable Processors / Socket P (LGA 3647)Supermicro's new generation X11 UP serverboards offer the highest levels of performance, efficiency, security and scalability in the industry with up to: 1TB DDR4 2666MHz in 8 DIMM slots per node, 7 PCI-E slots, SAS 3.0/SATA 3.0/NVMe hot-swap HDD/SSD support, 1GbE/10GBase-T/10G SFP+ networking options, SATA Disk-on-Module (DOM), and IPMI 2.0 plus KVM with dedicated LAN.

Server Motherboard

Specifications

General Information
Product Type:
Server Motherboard
Brand Name:
Supermicro
Manufacturer:
Supermicro Computer, Inc
Product Model:
X11SPM-TPF
Product Name:
X11SPM-TPF Server Motherboard
Package Type:
Retail
Manufacturer Part Number:
MBD-X11SPM-TPF-O
Manufacturer Website Address:
http://www.supermicro.com
Packaged Quantity:
1
Processor & Chipset
Chipset Manufacturer:
Intel
Processor Socket:
Socket P LGA-3647
Processor Supported:
Xeon
Total Processor Supported:
1
Memory
Number of Memory Slots:
6
Memory Form Factor:
RDIMM
Memory Form Factor:
DIMM
Memory Form Factor:
LRDIMM
Memory Speed Supported:
2.67 GHz
Memory Speed Supported:
2.40 GHz
Memory Speed Supported:
2.13 GHz
Memory Speed Supported:
1.87 GHz
Memory Speed Supported:
1.60 GHz
Memory Technology:
DDR4 SDRAM
Maximum Memory:
768 GB
Video
Graphics Controller Manufacturer:
ASPEED
Graphics Controller Model:
AST2500
Onboard Video:
On-board Video Chipset
Audio
Audio Channels:
7.1
Onboard Interfaces
Number of SATA Interfaces:
12
Total Number of Onboard USB Ports:
7
Number of Onboard USB 3.0 Ports:
3
Number of M.2 Interfaces:
1
I/O Controller
RAID Supported:
Yes
RAID Levels:
10
RAID Levels:
5
RAID Levels:
1
RAID Levels:
0
Controller Type:
Serial ATA/600
I/O Expansions
Number of Total Expansion Slots:
3
Number of PCI Express x8 Slots:
1
Number of PCI Express x16 Slots:
2
Total Number of PCI Express Slots:
3
Interfaces/Ports
VGA:
Yes
Total Number of USB Ports:
4
Number of USB 3.0 Ports:
2
Network & Communication
10Gigabit Ethernet:
Yes
Physical Characteristics
Width:
9.6"
Depth:
9.6"
Form Factor:
Micro ATX
Miscellaneous
Compatibility:
Chassis:
- SC813MFTQC-350CB2
- SC813MFTQC-R407CB
- SC113MFAC2-341CB
- SC113MFAC2-R606CB
- SC512F-350B
- SC823TQ-653LPB
- SC213LT-600LPB
- SC825TQC-R740LPB
- SC833T-653B
