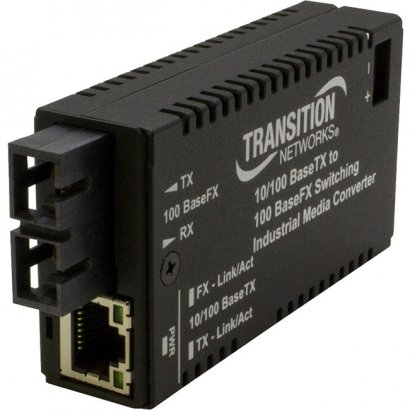

Transition Networks M/E-ISW Transceiver/Media Converter M/E-ISW-FX-02(SC)

The M/E-ISW Series is a hardened Fast Ethernet Mini media converter that provides a cost effective, plug-and-play media conversion between 10/100Base-TX ports and 100Base-FX ports for hardened or outdoor 10/100 environments. With its supported operating temperature range of -40°C to 75°C, the Mini offers a space saving alternative for converting copper to fiber in extreme environments.

Number of Network (RJ-45) Ports	1
Network (RJ-45)	Yes
Number of SC Ports	1
Total Number of Ports	2
SC Port Type	Duplex
Product Type	Transceiver/Media Converter
Manufacturer Part Number	M/E-ISW-FX-02(SC)
Manufacturer Website Address	http://www.transition.com
Manufacturer	Transition Networks, Inc
Product Name	M/E-ISW Transceiver/Media Converter
Product Series	M/E-ISW
Brand Name	Transition Networks
Maximum Distance Supported	1.24 Mile
Media Type Supported	Twisted Pair Optical Fiber
Fiber Mode Supported	Multi-mode
Fiber Optic Wavelength	1310 nm
Package Contents	M/E-ISW Transceiver/Media Converter Barrel Connector Pig-tail Cable DIN Rail Clip and Velcro
Country of Origin	Taiwan
Environmentally Friendly	Yes
Environmental Certification	RoHS WEEE
Network Technology	10/100Base-TX 100Base-FX
Ethernet Technology	Fast Ethernet
Weight (Approximate)	2 lb
Form Factor	Rail-mountable Wall Mountable
Height	0.9"
Width	1.8"
Depth	3.3"
Power Source	Power Supply
Limited Warranty	Lifetime

Interfaces/Ports
Number of Network (RJ-45) Ports	1
Network (RJ-45)	Yes
Number of SC Ports	1
Total Number of Ports	2
SC Port Type	Duplex
General Information
Product Type	Transceiver/Media Converter
Manufacturer Part Number	M/E-ISW-FX-02(SC)
Manufacturer Website Address	http://www.transition.com
Manufacturer	Transition Networks, Inc
Product Name	M/E-ISW Transceiver/Media Converter
Product Series	M/E-ISW
Brand Name	Transition Networks
Media & Performance
Maximum Distance Supported	1.24 Mile
Media Type Supported	Twisted Pair
Media Type Supported	Optical Fiber
Fiber Mode Supported	Multi-mode
Fiber Optic Wavelength	1310 nm
Miscellaneous
Package Contents	M/E-ISW Transceiver/Media Converter Barrel Connector Pig-tail Cable DIN Rail Clip and Velcro
Country of Origin	Taiwan
Environmentally Friendly	Yes
Environmental Certification	RoHS
Environmental Certification	WEEE
Network & Communication
Network Technology	10/100Base-TX
Network Technology	100Base-FX
Ethernet Technology	Fast Ethernet
Physical Characteristics
Weight (Approximate)	2 lb
Form Factor	Rail-mountable
Form Factor	Wall Mountable
Height	0.9"
Width	1.8"
Depth	3.3"
Power Description
Power Source	Power Supply
Warranty
Limited Warranty	Lifetime
