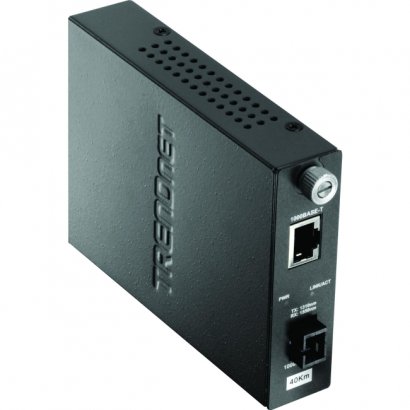

TRENDnet Media Converter TFC-110S40D3i

The TFC-110S40D3i intelligent fiber converter works with the TFC-1600 chassis system or as a standalone unit. This converter is a Dual Wavelength Single Mode SC-Type fiber converter that spans distances up to 40km (24.9 miles). This module must be used with the TFC-110S40D5i module. Ports include 1 x 10/100Base-TX (RJ-45) port and 1 x 100Base-FX (SC Simplex Type) port.

Product Type	Transceiver/Media Converter
Brand Name	TRENDnet
Manufacturer	TRENDnet
Product Model	TFC-110S40D3i
Product Name	TFC-110S40D3i Media Converter
Manufacturer Part Number	TFC-110S40D3i
Manufacturer Website Address	http://www.trendnet.com
Green Compliant	Yes
Green Compliance Certificate/Authority	RoHS WEEE
Package Contents	TFC-110S40D3i Media Converter Multi-Language Quick Installation Guide Power Adapter (5 V DC, 1 A)
Ethernet Technology	Fast Ethernet
Network Technology	10/100Base-TX 100Base-FX
Number of Network (RJ-45) Ports	1
Network (RJ-45)	Yes
Number of SC Ports	1
Total Number of Ports	2
Media Type Supported	Twisted Pair Optical Fiber
Fiber Mode Supported	Single-mode
Maximum Distance Supported	24.85 Mile
Height	3.5"
Width	1"
Depth	4.7"
Form Factor	Desktop Wall Mountable
Weight (Approximate)	12.49 oz
Limited Warranty	3 Year

General Information
Product Type	Transceiver/Media Converter
Brand Name	TRENDnet
Manufacturer	TRENDnet
Product Model	TFC-110S40D3i
Product Name	TFC-110S40D3i Media Converter
Manufacturer Part Number	TFC-110S40D3i
Manufacturer Website Address	http://www.trendnet.com
Miscellaneous
Green Compliant	Yes
Green Compliance Certificate/Authority	RoHS
Green Compliance Certificate/Authority	WEEE
Package Contents	TFC-110S40D3i Media Converter Multi-Language Quick Installation Guide Power Adapter (5 V DC, 1 A)
Network & Communication
Ethernet Technology	Fast Ethernet
Network Technology	10/100Base-TX
Network Technology	100Base-FX
Interfaces/Ports
Number of Network (RJ-45) Ports	1
Network (RJ-45)	Yes
Number of SC Ports	1
Total Number of Ports	2
Media & Performance
Media Type Supported	Twisted Pair
Media Type Supported	Optical Fiber
Fiber Mode Supported	Single-mode
Maximum Distance Supported	24.85 Mile
Physical Characteristics
Height	3.5"
Width	1"
Depth	4.7"
Form Factor	Desktop
Form Factor	Wall Mountable
Weight (Approximate)	12.49 oz
Warranty
Limited Warranty	3 Year
