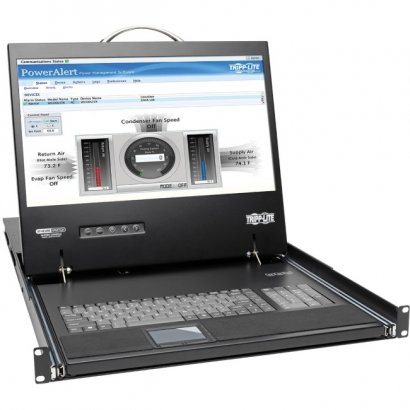

Tripp Lite's B070-016-19-IP2 NetCommander® 16-Port Cat5 1U Rack-Mount Console KVM Switch includes a full keyboard, 19-inch LCD screen and touchpad in a 1U rack-mount console. It connects up to 16 computers and/or servers and allows you to control them locally or remotely via LAN, WAN or web browser.Connect computers/servers up to 100 feet away using Cat5e/6 cabling and a compatible Tripp Lite B078-Series server interface unit (B078-101-USB2 required for Fast Virtual Media speeds up to 12 Mbps). Dual 10/100 LAN ports ensure uninterrupted remote access in case one port should fail. A local user and two remote users can log on simultaneously and switch between the 16 ports using an on-screen display, hotkeys or remote toolbar. Multi-level password protection prohibits unauthorized access.The LCD supports video resolutions up to 1366 x 768. Dual serial ports allow control of serial devices, such as IP PDUs, firewalls and routers. You can assign individual ports to an IP PDU port to power on/off the server connected to that port. The heavy-duty steel housing slides neatly into the rack when not in use. Free NetCommander-AXS management software is available to access and control your Tripp Lite NetCommander IP KVM switches (B070 and B072 Series). From a single interface, you can access server ports on any of your KVM switches, power cycle or power on/off outlets of IP PDUs, and manage KVM settings. This software can be found at the Technical Support link in the right-hand column. Features Includes 16-Port KVM Switch, 19 in. LCD, Keyboard and Touchpad Mounts in 1U of space in EIA-standard 19 in. rack Connects up to 16 computers/servers up to 100 ft. away via Cat5e/6 cabling and Tripp Lite B078 Series SIUs Computers with DisplayPort or HDMI connectors require Tripp Lite VGA adapters, such as P134-06N-VGA-V2 or P131-06N Fast Virtual Media KVM system: U.S. Patent #9,417,720 BIOS-level control of any server brand and model IP Remote Access for Fewer Trips to the Server Room Java-based application allows 24/7 remote access from anywhere via web browser over secure IP connection Non-browser client that can bypass browser-related Java security prompts is available Up to 3 users (1 local, 2 remote) can sign in simultaneously Up to 5 users can share a single session Supports both IPv4 and IPv6 Dual 10/100 Mbps LAN ports for uninterrupted remote access in case one port should fail Simplifies IT Tasks Users can switch between ports via on-screen display, hotkeys or remote toolbar Dual RJ45 serial ports for connecting IP devices, such as PDUs, firewalls and routers Assign individual ports to an IP PDU port to power on/off the server connected to that port Virtual Media allows.iso file to be mounted to target server and accessed directly Supports RADIUS and LDAP/S authentication Log tracks events on your installation Large 19 in. LCD Screen Supports video resolutions up to 1366 x 768; 1920 x 1080 remotely DDC emulation allows for optimal output to LCD Advanced Security Features Multi-level password protection-create administrator accounts with full access and user accounts with limited access 128-bit AES and HTTPS encryption for highest security standards
NetCommander 16-Port Cat5 1U Rack-Mount Console KVM Switch
