Description
Condition:
New

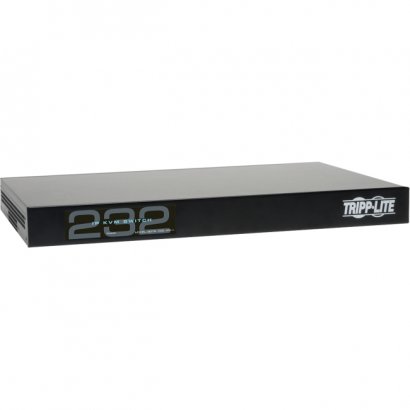

Tripp Lite's 32-port NetCommander Cat5 IP KVM Switch is the optimal solution for remote control of multiple computers/servers by up to 3 (1 Local and 2 Remote) independent, simultaneous users. A single unit occupies a mere 1U of rack space, yet can control up to 32 directly connected computers. Connected computers/servers can be located up to 100 ft. from the KVM switch, with support for video resolutions up to 1920 x 1080 @ 60Hz. A full-screen graphical OSD with multi-level authentication (Administrator and User) allows you to quickly and efficiently manage your installation. The OSD includes a range of settings for system configuration that allow you to add accounts, customize account access, install a SSL certificate, backup and restore system settings, upgrade firmware, and more. Accessing the connected computers is a breeze; a wide range ofvideo and mouse sync settings ensure optimal remote session performance in any situation. In addition to ports for computers/servers, two serial ports are provided for the connection and control of serial manageable devices such as PDU's, firewalls, and routers. IP PDU's can be added as devices to be controlled by the KVM, and individual KVM ports can be assigned to a PDU port, giving you the ability to Power Cycle or Power Off/On the computer/server connected to that port. Other features include dual power supplies, dual ethernet ports, SNMP messaging, and a log that records the events that take place on the installation. Constructed of heavy-duty steel housing.
| USB |
Yes
|
| VGA |
Yes
|
| Number of Network (RJ-45) Ports |
36
|
| Network (RJ-45) |
Yes
|
| Number of USB Ports |
2
|
| Number of VGA Ports |
1
|
| Product Type |
KVM Switchbox
|
| Brand Name |
Tripp Lite
|
| Manufacturer |
Tripp Lite
|
| Product Model |
B072-032-IP2
|
| Product Name |
32-Port, 2+1 User NetCommander Cat5 IP KVM Switch
|
| Product Line |
NetCommander
|
| Manufacturer Part Number |
B072-032-IP2
|
| Manufacturer Website Address |
http://www.tripplite.com
|
| Green Compliant |
Yes
|
| Green Compliance Certificate/Authority |
RoHS
|
| Platform Supported |
Linux
PC
|
| Package Contents |
- 32-Port, 2+1 User NetCommander Cat5 IP KVM Switch
- Rackmount Hardware
- 2 x Power Cords
|
| Height |
1.7"
|
| Width |
17.3"
|
| Depth |
11"
|
| Form Factor |
Rack-mountable
|
| Weight (Approximate) |
7.68 lb
|
| KVM Technology |
Digital
|
| Number of Computers Supported |
32
|
| Number of Local Users Supported |
1
|
| Number of Remote Users Supported |
2
|
| Maximum Video Resolution |
1920 x 1080
|
| Graphic Mode |
Full HD
|
| Limited Warranty |
2 Year
|
Specifications
| Interfaces/Ports |
| USB |
Yes |
| VGA |
Yes |
| Number of Network (RJ-45) Ports |
36 |
| Network (RJ-45) |
Yes |
| Number of USB Ports |
2 |
| Number of VGA Ports |
1 |
| General Information |
| Product Type |
KVM Switchbox |
| Brand Name |
Tripp Lite |
| Manufacturer |
Tripp Lite |
| Product Model |
B072-032-IP2 |
| Product Name |
32-Port, 2+1 User NetCommander Cat5 IP KVM Switch |
| Product Line |
NetCommander |
| Manufacturer Part Number |
B072-032-IP2 |
| Manufacturer Website Address |
http://www.tripplite.com |
| Miscellaneous |
| Green Compliant |
Yes |
| Green Compliance Certificate/Authority |
RoHS |
| Platform Supported |
Linux |
| Platform Supported |
PC |
| Package Contents |
- 32-Port, 2+1 User NetCommander Cat5 IP KVM Switch
- Rackmount Hardware
- 2 x Power Cords
|
| Physical Characteristics |
| Height |
1.7" |
| Width |
17.3" |
| Depth |
11" |
| Form Factor |
Rack-mountable |
| Weight (Approximate) |
7.68 lb |
| Technical Information |
| KVM Technology |
Digital |
| Number of Computers Supported |
32 |
| Number of Local Users Supported |
1 |
| Number of Remote Users Supported |
2 |
| Video |
| Maximum Video Resolution |
1920 x 1080 |
| Graphic Mode |
Full HD |
| Warranty |
| Limited Warranty |
2 Year |
|
