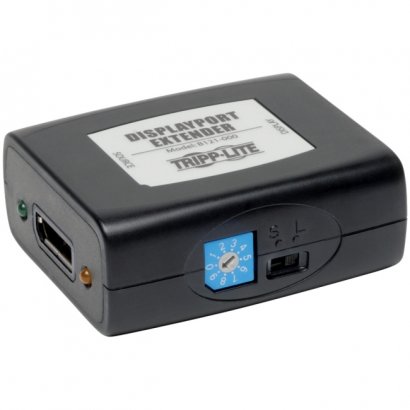

Tripp Lite Displayport Active Extender Signal Booster ( Displayport F/F ) B121-000

Tripp Lite's B121-000 DisplayPort Signal Extender increases the distance a Displayport signal can be transmitted beyond the recommended 16 ft. (5 m.). It supports computer video resolutions up to 1920 x 1200 @ 60Hz, and HD resolutions up to 1080p @ 60Hz, as well as a maximum distance of 150 ft. from the source. Use P580-Series Displayport cables in most applications. When extending a 1920 x 1200 @ 60Hz (or 1080p @ 60Hz) video signal more than 100 ft., use cable made with 24Awg wiring. (Available from Tripp Lite as a custom order) Simply connect the longer cable between the source and the B121-000, and the shorter cable (16 ft. or less) between the adapter and the monitor. Software or drivers are not required. Built-in Equalization control to adjust the video image. HDCP compliant. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Ports	2 x DisplayPort Female
Product Type	Signal Repeater
Brand Name	Tripp Lite
Manufacturer	Tripp Lite
Product Model	B121-000
Product Name	Displayport Active Extender Signal Booster ( Displayport F/F )
Manufacturer Part Number	B121-000
Manufacturer Website Address	http://www.tripplite.com
Green Compliant	Yes
Green Compliance Certificate/Authority	RoHS
Package Contents	Displayport Active Extender Signal Booster ( Displayport F/F ) External Power Supply ( Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A) Screwdriver for Equalization Adjustment Owner's Manual

Interfaces/Ports
Ports	2 x DisplayPort Female
General Information
Product Type	Signal Repeater
Brand Name	Tripp Lite
Manufacturer	Tripp Lite
Product Model	B121-000
Product Name	Displayport Active Extender Signal Booster ( Displayport F/F )
Manufacturer Part Number	B121-000
Manufacturer Website Address	http://www.tripplite.com
Miscellaneous
Green Compliant	Yes
Green Compliance Certificate/Authority	RoHS
Package Contents	Displayport Active Extender Signal Booster ( Displayport F/F ) External Power Supply ( Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A) Screwdriver for Equalization Adjustment Owner's Manual
