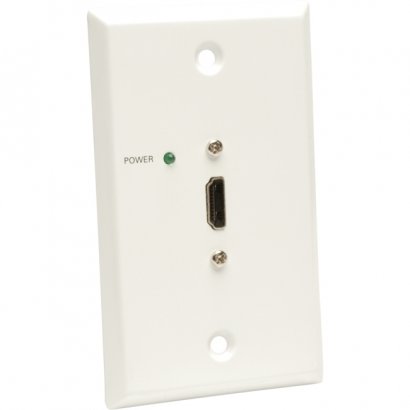

Tripp Lite HDMI Over Cat5 Passive Extender Remote Wallplate B126-1P0-WP-1

The B126-1P0-WP-1 is a receiver wallplate that is used with the B126-002 and B126-004 transmitter units. It extends a 1080p (60Hz) signal to a monitor up to 50 ft. away using Cat5e/6 cable. To achieve maximum distance and resolution, use 24Awg Solid Wire Cat5e/6 cable. (Tripp Lite's N202-Series) It features RJ45 jacks for easy connection with patch cables; 110 punchdown not required. No external power required. Supports 24-bit True Color (8-bits per channel), HDCP, 3D, and both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM).

Number of HDMI Ports	1
Number of RJ-45 Ports	1
Product Type	Faceplate
Brand Name	Tripp Lite
Manufacturer	Tripp Lite
Product Model	B126-1P0-WP-1
Product Name	HDMI Over Cat5 Passive Extender Remote Wallplate
Manufacturer Part Number	B126-1P0-WP-1
Manufacturer Website Address	http://www.tripplite.com
Green Compliant	Yes
Green Compliance Certificate/Authority	RoHS
Package Contents	HDMI Over Cat5 Passive Extender Remote Wallplate Wallplate Mounting Hardware Owner's Manual
Mount Location	Wall Mount
Limited Warranty	1 Year

Interfaces/Ports
Number of HDMI Ports	1
Number of RJ-45 Ports	1
General Information
Product Type	Faceplate
Brand Name	Tripp Lite
Manufacturer	Tripp Lite
Product Model	B126-1P0-WP-1
Product Name	HDMI Over Cat5 Passive Extender Remote Wallplate
Manufacturer Part Number	B126-1P0-WP-1
Manufacturer Website Address	http://www.tripplite.com
Miscellaneous
Green Compliant	Yes
Green Compliance Certificate/Authority	RoHS
Package Contents	HDMI Over Cat5 Passive Extender Remote Wallplate Wallplate Mounting Hardware Owner's Manual
Technical Information
Mount Location	Wall Mount
Warranty
Limited Warranty	1 Year
