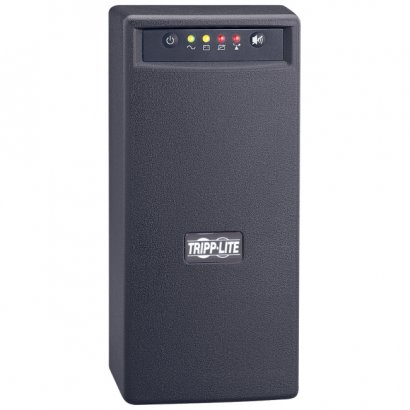

Tripp Lite 800VA UPS OMNIVS800

Tripp Lite's OMNIVS800 line interactive UPS system offers voltage regulation, surge suppression and battery support for sensitive electronics. Internal UPS circuits support entry level PC systems for up to 60 minutes during power failures. Automatic Voltage Regulation (AVR) circuits regulate brownouts as low as 89 volts back to usable levels without using battery power. Includes 6 battery supported outlets plus 1 additional surge suppression-only outlet. HID-compliant USB port enables unattended system shutdown. HID-compliant USB port also enables direct integration with built-in power management and auto-shutdown features of Windows and MAC OS X. PowerAlert software available via free download from www.tripplite.com. Built-in single line phone/Ethernet suppression jacks. 800VA/475 watt power handling ability. Offers 3.5 minutes battery runtime with a full load of 800VA and 11.5 minutes with a half load of 400VA. Supports battery replacement via built-in access panel.

Product Type	Line-interactive UPS
Product Series	VS
Brand Name	Tripp Lite
Manufacturer	Tripp Lite
Product Name	OMNIVS800 800VA UPS
Manufacturer Part Number	OMNIVS800
Manufacturer Website Address	http://www.tripplite.com
Maximum Battery Recharge Time	4 Hour
Backup/Run Time (Half Load)	19 Minute
Backup/Run Time (Full Load)	6 Minute
Battery Life	6 Year
Battery Chemistry	Sealed Lead Acid
USB	Yes
Load Capacity (VA)	800 VA
Load Capacity (Watt)	475 W
Input Voltage	110 V AC
Output Voltage	120 V AC
Height	10.8"
Width	5.3"
Depth	7.3"
Form Factor	Tower
Weight (Approximate)	21.20 lb
Receptacles	6 x NEMA 5-15R 1 x NEMA 5-15R
Plug/Connector Type	NEMA 5-15P
Package Contents	OMNIVS800 800VA UPS USB and telephone cable User manual with warranty information
Limited Warranty	3 Year

General Information
Product Type	Line-interactive UPS
Product Series	VS
Brand Name	Tripp Lite
Manufacturer	Tripp Lite
Product Name	OMNIVS800 800VA UPS
Manufacturer Part Number	OMNIVS800
Manufacturer Website Address	http://www.tripplite.com
Battery Information
Maximum Battery Recharge Time	4 Hour
Backup/Run Time (Half Load)	19 Minute
Backup/Run Time (Full Load)	6 Minute
Battery Life	6 Year
Battery Chemistry	Sealed Lead Acid
Interfaces/Ports
USB	Yes
Power Description
Load Capacity (VA)	800 VA
Load Capacity (Watt)	475 W
Input Voltage	110 V AC
Output Voltage	120 V AC
Physical Characteristics
Height	10.8"
Width	5.3"
Depth	7.3"
Form Factor	Tower
Weight (Approximate)	21.20 lb
Technical Information
Receptacles	6 x NEMA 5-15R
Receptacles	1 x NEMA 5-15R
Plug/Connector Type	NEMA 5-15P
Miscellaneous
Package Contents	OMNIVS800 800VA UPS USB and telephone cable User manual with warranty information
Warranty
Limited Warranty	3 Year
