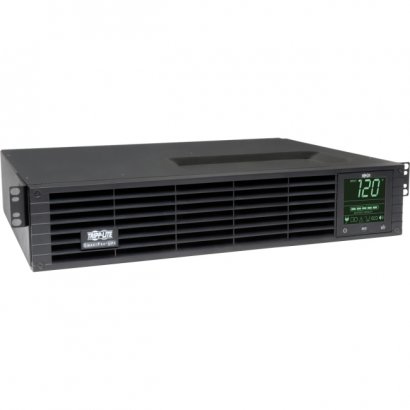

Tripp Lite UPS System SMART1000RMXL2U

Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and telecommunications equipment. Line Interactive Uninterruptible Power Supply (UPS) with built-in Auto-Voltage Regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Tripp Lite's unique configuration excels in exceptionally poor-power environments with two separate levels of voltage boost to correct both slight undervoltages and severe brownout conditions. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 97% full load efficiency offers reduced heat emissions and operating costs. Network management interfaces support communications via USB, RS-232 and optional SNMPWEBCARD network interface. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Network communications ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions. Includes PowerAlert monitoring software and complete cabling. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off (EPO) interface. LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options. Programmable self-test. Field-replaceable, hot-swappable battery modules.

Product Type	Line-interactive UPS
Product Series	SmartPro
Brand Name	Tripp Lite
Manufacturer	Tripp Lite
Product Model	SMART1000RMXL2U
Product Name	SMART1000RMXL2U UPS System
Manufacturer Part Number	SMART1000RMXL2U
Manufacturer Website Address	http://www.tripplite.com
Maximum Battery Recharge Time	4.50 Hour
Backup/Run Time (Half Load)	18 Minute
Backup/Run Time (Full Load)	6.30 Minute
USB	Yes
Serial Port	Yes
Load Capacity (VA)	1000 VA
Load Capacity (Watt)	900 W
Input Voltage	110 V AC
Output Voltage	120 V AC
Height	3.5"
Width	17.5"
Depth	13.5"
Rack Height	2U
Form Factor	Tower/Rack Mountable
Weight (Approximate)	45.50 lb
Receptacles	8 x NEMA 5-15R
Plug/Connector Type	NEMA 5-15P
Network Management	SNMP Manageable
Package Contents	SMART1000RMXL2U UPS System PowerAlert Software CD Serial Cable USB Cable EPO Cable 4 x Post Rackmount Installation Kit Instruction Manual
Limited Warranty	2 Year

General Information
Product Type	Line-interactive UPS
Product Series	SmartPro
Brand Name	Tripp Lite
Manufacturer	Tripp Lite
Product Model	SMART1000RMXL2U
Product Name	SMART1000RMXL2U UPS System
Manufacturer Part Number	SMART1000RMXL2U
Manufacturer Website Address	http://www.tripplite.com
Battery Information
Maximum Battery Recharge Time	4.50 Hour
Backup/Run Time (Half Load)	18 Minute
Backup/Run Time (Full Load)	6.30 Minute
Interfaces/Ports
USB	Yes
Serial Port	Yes
Power Description
Load Capacity (VA)	1000 VA
Load Capacity (Watt)	900 W
Input Voltage	110 V AC
Output Voltage	120 V AC
Physical Characteristics
Height	3.5"
Width	17.5"
Depth	13.5"
Rack Height	2U
Form Factor	Tower/Rack Mountable
Weight (Approximate)	45.50 lb
Technical Information
Receptacles	8 x NEMA 5-15R
Plug/Connector Type	NEMA 5-15P
Management
Network Management	SNMP Manageable
Miscellaneous
Package Contents	SMART1000RMXL2U UPS System PowerAlert Software CD Serial Cable USB Cable EPO Cable 4 x Post Rackmount Installation Kit Instruction Manual
Warranty
Limited Warranty	2 Year
