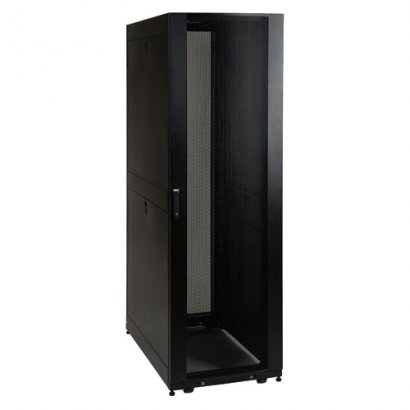

Tripp Lite 42U Mid-Depth SmartRack Premium Enclosure (Includes Doors and Side Panels) SR42UBMD

The SR42UBMD is part of our new line of mid-depth rack enclosures. Our new line offers 36" (927mm) depth opposed to the standard 42" (1050mm).The SR42UBMD features a massive front-to rear-ventilation capacity that meets or exceeds server manufacturer requirements. Its integrated baying tabs make it easy to combine multiple enclosures in rows for data center applications. This enclosure is also compatible with hot-aisle/cold-aisle configurations.3000 lbs of standard 19-inch rack equipment in 42U is housed inside the SR42UBMD. Its front and rear pairs of vertical rails have square mounting holes that are adjustable in quarter-inch increments from 4 to 31 inches. Adjustment is quick and an easy-view depth index ensures consistent rail placement without requiring time-consuming measurements. Each rack space within the enclosure is numbered for ready reference.Two of the adjustable vertical mounting rails support toolless button-mount 0U installation of up to four compatible PDUs and cable managers. This feature makes it easier to route cabling to rack equipment and reduces cord clutter.With its locking, reversible, removable front and rear doors, and locking, removable side panels, the SR45UBMD provides ultimate equipment safety. The side panels are half size for ease of removal and reinstallation. The split rear door design allows the enclosure to be placed closer to a wall. The SR42UBMD meets all requirements toward PCI DSS compliance.The top panel of the SR42UBMD is vented to help remove warm air from the enclosure and draw in cool air by convection. The top panel includes ports for cable routing, and can be quickly removed without tools. To facilitate cable access, the SR42UBMD is open-bottom.All components of the SR42UBMD are grounded to the enclosure frame. Front and rear threaded grounding points are provided for connection to the facility earth ground. The removable front and rear doors feature quick-release ground wires.To simplify deployment, the SR42UBMD comes with preinstalled casters that enable it to be easily maneuvered into the desired location, where it can be secured by adjusting the preinstalled levelers. Note: the casters are intended for minor position adjustments and are not designed for moving the enclosure over long distances.

Product Type	Rack Cabinet
Brand Name	Tripp Lite
Manufacturer	Tripp Lite
Product Model	SR42UBMD
Product Name	42U Mid-Depth SmartRack Premium Enclosure (Includes Doors and Side Panels)
Product Line	SmartRack
Manufacturer Part Number	SR42UBMD
Manufacturer Website Address	http://www.tripplite.com
Green Compliant	Yes
Green Compliance Certificate/Authority	RoHS
Assembly Required	No
Package Contents	42U Mid-Depth SmartRack Premium Enclosure (Includes Doors and Side Panels) 50 x M6 Cage Nuts 50 x M6 Screws Stabilizing Brackets 4 x Side Panels 4 x Side Panel Locks 2 x Door and Side Panel Keys 50 x M6 Washers Owner's Manual
Height	78.5"
Width	23.6"
Depth	36"
Color	Black
Rack Width	19"
Rack Height	42U
Weight (Approximate)	250 lb
Limited Warranty	5 Year

General Information
Product Type	Rack Cabinet
Brand Name	Tripp Lite
Manufacturer	Tripp Lite
Product Model	SR42UBMD
Product Name	42U Mid-Depth SmartRack Premium Enclosure (Includes Doors and Side Panels)
Product Line	SmartRack
Manufacturer Part Number	SR42UBMD
Manufacturer Website Address	http://www.tripplite.com
Miscellaneous
Green Compliant	Yes
Green Compliance Certificate/Authority	RoHS
Assembly Required	No
Package Contents	42U Mid-Depth SmartRack Premium Enclosure (Includes Doors and Side Panels) 50 x M6 Cage Nuts 50 x M6 Screws Stabilizing Brackets 4 x Side Panels 4 x Side Panel Locks 2 x Door and Side Panel Keys 50 x M6 Washers Owner's Manual
Physical Characteristics
Height	78.5"
Width	23.6"
Depth	36"
Color	Black
Rack Width	19"
Rack Height	42U
Weight (Approximate)	250 lb
Warranty
Limited Warranty	5 Year
