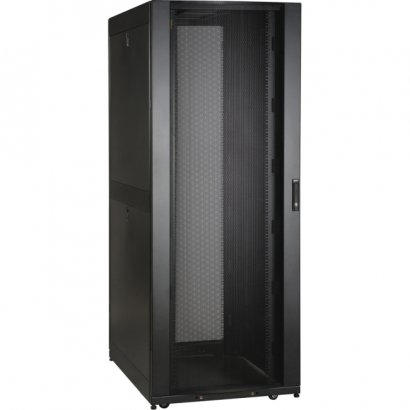

Tripp Lite 45U SmartRack Wide Premium Enclosure (Includes Doors and Side Panels) SR45UBWD

The SR45UBWD is a WIDE version of our standard 45U SmartRack. This enclosure is 750mm wide (29.5") compared to the standard 600mm wide (23.6"). This extra width allows for high density equipment installations. It allows cable management and PDU mounting off to the sides of the rack in order to keep these items out of the airflow for proper cooling.The SR45UBWD features a massive front-to rear-ventilation capacity that meets or exceeds server manufacturer requirements. Its integrated baying tabs make it easy to combine multiple enclosures in rows for data center applications. This enclosure is also compatible with hot-aisle/cold-aisle configurations.With its locking, reversible, removable front and rear doors, and locking, removable side panels, the SR45UBWD provides ultimate equipment safety. The side panels are half size for ease of removal and reinstallation. The split rear door design allows the enclosure to be placed closer to a wall. The SR45UBWD meets all requirements toward PCI DSS compliance.The top panel of the SR45UBWD is vented to help remove warm air from the enclosure and draw in cool air by convection. The top panel includes ports for cable routing, and can be quickly removed without tools. To facilitate cable access, the SR45UBWD is open-bottom.All components of the SR45UBWD are grounded to the enclosure frame. Front and rear threaded grounding points are provided for connection to the facility earth ground. The removable front and rear doors feature quick-release ground wires.It houses 3000 lb of standard 19-inch rack equipment in 45U. To simplify deployment, the SR45UBWD comes with preinstalled casters that enable it to be easily maneuvered into the desired location, where it can be secured by adjusting the preinstalled levelers. Note: the casters are intended for minor position adjustments and are not designed for moving the enclosure over long distances.The SR45UBWD comes with a 5-year product warranty. As part of the SmartRack family, the SR45UBWD is compatible with Tripp Lite's extensive range of rackmount accessories, enabling you to customize your solution to meet any requirement.

Product Type	Rack Cabinet
Brand Name	Tripp Lite
Manufacturer	Tripp Lite
Product Model	SR45UBWD
Product Name	45U SmartRack Wide Premium Enclosure (Includes Doors and Side Panels)
Product Line	SmartRack
Manufacturer Part Number	SR45UBWD
Manufacturer Website Address	http://www.tripplite.com
Green Compliant	Yes
Green Compliance Certificate/Authority	RoHS
Package Contents	45U SmartRack Wide Premium Enclosure (Includes Doors and Side Panels) 4 x Side Panels 4 x Side Panel Locks 2 x Door and Side Panel Keys 50 x M6 Screws 50 x M6 Cage Nuts 50 x M6 Washers Owner's Manual Mounting Hardware Stabilizing Bracket
Height	83.8"
Width	29.5"
Depth	43"
Color	Black
Rack Width	19"
Rack Height	45U
Weight (Approximate)	339.51 lb
Limited Warranty	5 Year

General Information
Product Type	Rack Cabinet
Brand Name	Tripp Lite
Manufacturer	Tripp Lite
Product Model	SR45UBWD
Product Name	45U SmartRack Wide Premium Enclosure (Includes Doors and Side Panels)
Product Line	SmartRack
Manufacturer Part Number	SR45UBWD
Manufacturer Website Address	http://www.tripplite.com
Miscellaneous
Green Compliant	Yes
Green Compliance Certificate/Authority	RoHS
Package Contents	45U SmartRack Wide Premium Enclosure (Includes Doors and Side Panels) 4 x Side Panels 4 x Side Panel Locks 2 x Door and Side Panel Keys 50 x M6 Screws 50 x M6 Cage Nuts 50 x M6 Washers Owner's Manual Mounting Hardware Stabilizing Bracket
Physical Characteristics
Height	83.8"
Width	29.5"
Depth	43"
Color	Black
Rack Width	19"
Rack Height	45U
Weight (Approximate)	339.51 lb
Warranty
Limited Warranty	5 Year
