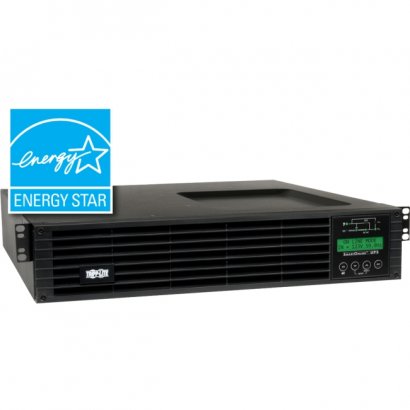

Tripp Lite SmartOnline 1500VA Tower/Rack Mountable UPS SU1500RTXLCD2U

The SU1500RTXLCD2U is ENERGY STAR qualified for its ability to save customers money while helping to protect the environment. Tripp Lite Smart Online UPS systems offer high performance power protection ideal for critical server and network equipment in datacenters, computer rooms and network closets. Online, double-conversion Uninterruptible Power Supply (UPS) maintains perfectly regulated output power by continuously converting raw AC input to DC, then re-converting output back to AC. Fully regulated sine wave AC output with +/-2% voltage regulation powers network equipment continuously, even during severe brownouts and overvoltages, all without depleting UPS battery reserves. Maintains battery-derived AC output during power failures with zero transfer time. Extended runtime options available. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Highly efficient operation in optional economy mode saves BTU heat output and energy costs. Network management interfaces support communications via USB, RS-232, contact-closure and optional SNMPWEBCARD network interface. Built-in DB9 port offers both enhanced RS-232 data and basic contact closure monitoring ability. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Includes PowerAlert monitoring software and complete cabling. Emergency Power Off (EPO) interface. LED display reports UPS operating mode, line power availability, battery mode operation, inverter operation, ECO mode status and output power availability. LED/LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode LCD configuration options. Programmable self-test. Fault-tolerant auto-bypass mode. Field-replaceable, hot-swappable internal batteries and external battery packs.

Product Type	Dual Conversion Online UPS
Brand Name	Tripp Lite
Manufacturer	Tripp Lite
Product Model	SU1500RTXLCD2U
Product Name	SmartOnline SU1500RTXLCD2U 1500VA Tower/Rack Mountable UPS
Product Line	SmartOnline
Manufacturer Part Number	SU1500RTXLCD2U
Manufacturer Website Address	http://www.tripplite.com
Maximum Battery Recharge Time	3 Hour
Backup/Run Time (Half Load)	14 Minute
Backup/Run Time (Full Load)	4.20 Minute
USB	Yes
Serial Port	Yes
Load Capacity (VA)	1500 VA
Load Capacity (Watt)	1350 W
Input Voltage	110 V AC
Output Voltage	127 V AC 110 V AC 120 V AC 115 V AC
Height	3.5"
Width	17.5"
Depth	18.5"
Rack Height	2U
Form Factor	Tower/Rack Mountable
Weight (Approximate)	45.20 lb
Receptacles	6 x NEMA 5-15R
Plug/Connector Type	NEMA 5-15P
Network Management	SNMP Manageable
Package Contents	SmartOnline SU1500RTXLCD2U 1500VA Tower/Rack Mountable UPS PowerAlert Software CD USB Cable Serial Cable EPO Cable 4 Post Rackmount Installation Kit Instruction Manual
Limited Warranty	2 Year

General Information
Product Type	Dual Conversion Online UPS
Brand Name	Tripp Lite
Manufacturer	Tripp Lite
Product Model	SU1500RTXLCD2U
Product Name	SmartOnline SU1500RTXLCD2U 1500VA Tower/Rack Mountable UPS
Product Line	SmartOnline
Manufacturer Part Number	SU1500RTXLCD2U
Manufacturer Website Address	http://www.tripplite.com
Battery Information
Maximum Battery Recharge Time	3 Hour
Backup/Run Time (Half Load)	14 Minute
Backup/Run Time (Full Load)	4.20 Minute
Interfaces/Ports
USB	Yes
Serial Port	Yes
Power Description
Load Capacity (VA)	1500 VA
Load Capacity (Watt)	1350 W
Input Voltage	110 V AC
Output Voltage	127 V AC
Output Voltage	110 V AC
Output Voltage	120 V AC
Output Voltage	115 V AC
Physical Characteristics
Height	3.5"
Width	17.5"
Depth	18.5"
Rack Height	2U
Form Factor	Tower/Rack Mountable
Weight (Approximate)	45.20 lb
Technical Information
Receptacles	6 x NEMA 5-15R
Plug/Connector Type	NEMA 5-15P
Management
Network Management	SNMP Manageable
Miscellaneous
Package Contents	SmartOnline SU1500RTXLCD2U 1500VA Tower/Rack Mountable UPS PowerAlert Software CD USB Cable Serial Cable EPO Cable 4 Post Rackmount Installation Kit Instruction Manual
Warranty
Limited Warranty	2 Year
