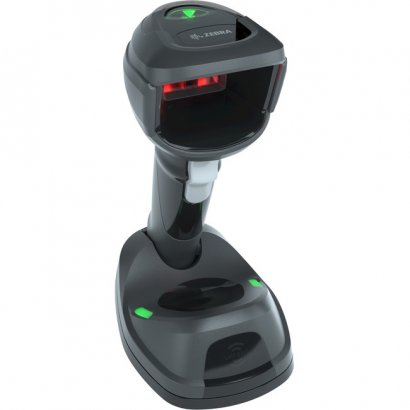

Zebra DS9900 Series Corded Hybrid Imager for Retail DS9908-SR4U2100AZW

BOOST PRODUCTIVITY AT THE POINT OF SALE WITH THE ULTIMATE IN PERFORMANCE AND DESIGN The point of sale is your last opportunity to make a good impression. With the DS9900 Series, you can give shoppers the checkout experience they expect - short lines, a speedy transaction and attentive service. A one-of-a-kind hybrid design provides maximum flexibility, offering both handheld and hands-free scanning. While other products are handheld scanners retrofitted with a base, Zebra's award-winning Industrial Design team created the DS9900 Series from the ground up for both handheld and hands-free use. You get Zebra's industry-leading scanning technology, seamless switching between modes and superior ease of use, along with a wide range of innovative features that boost productivity. An RFID model combines a barcode scanner and RFID reader to extend the benefits of RFID to your point of sale. Empower your checkout stands with the DS9900 Series Hybrid Presentation Imager - the ultimate in performance and design.Industry-best performance Scan it all with virtually no exceptions The DS9900 Series combines an 800 MHz microprocessor, a high-resolution megapixel sensor and Zebra's exclusive PRZM Intelligent Imaging technology for unparalleled performance on 1D, 2D and Digimarc® barcodes. Problematic barcodes won't slow down your checkout lanes. The DS9900 Series can instantly capture dense, poorly printed, damaged, crinkled, faded, distorted, low-contrast, and glossy printed barcodes, as well as electronic barcodes on dimly lit mobile phone displays.Rapid-fire scanning to keep your lines moving With the widest field of view in its class and an advanced illumination system, the DS9900 Series provides the near instant barcode capture you need to keep the busiest checkout lines moving. You get one of the industry's top first-pass read rates - up to 240 in./610 cm per second. A large field of view makes presentation scanning easier than ever, enabling associates to focus on your shoppers rather than positioning items. Bring RFID to your point of saleIf you are already benefiting from RFID in your supply chain, you can close the RFID loop by capturing RFID-tagged merchandise at the POS with the RFID model. Checkouts are easier than ever, since associates can scan multiple items at once without line of sight. Capturing RFID tags provides the real-time inventory visibility needed for timely re-ordering and trending analysis. The reader operates with just 5 VDC and does not require an external power supply. And complimentary RFID data conversion software lets you read RFID tags without modifying your existing POS application.

Host Interface	USB
Product Type	Barcode Scanner Kit
Manufacturer Part Number	DS9908-SR4U2100AZW
Manufacturer Website Address	http://www.zebra.com
Manufacturer	Zebra Technologies Corporation
Product Model	DS9908-SR
Product Name	DS9900 Series Corded Hybrid Imager for Retail
Product Series	DS9900
Brand Name	Zebra
Application/Usage	Retail Quick Service Restaurant (QSR) Industrial Convenience Store
Package Contents	DS9900 Series Corded Hybrid Imager for Retail DS9908-SR00004ZZWW Scanner CBA-U21-S07ZBR Suielded USB Cable
Ingress Protection (IP) Rating	IP52
Weight (Approximate)	11.64 oz
Form Factor	Handheld
Height	8"
Width	3.7"
Depth	5.2"
Product Color	Midnight Black
Barcode Symbology Supported	1D: Code 39 Code 128 Code 93, Codabar/NW7 Code 11 MSI Plessey UPC/EAN I 2 of 5 Korean 3 of 5 GS1 DataBar Base 32 (Italian Pharma) 2D: PDF417 Micro PDF417 Composite Codes TLC-39 Aztec DataMatrix MaxiCode QR Code Micro QR Han Xin Postal Codes
Connectivity Technology	Cable
Scanning Distance	24"
Scanner Range	Standard Range
Drop Specification	DS9908: Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete
Image Sensor Type	Imager
Cable Type Included	USB
Scanning Capability	1D 2D
Field of View (Horizontal)	48°
Field of View (Vertical)	31°
Reading Angle (Skew)	60°
Reading Angle (Pitch)	60°
Reading Angle (Roll)	360°
Maximum Ambient Light	107600 lux
Minimum Print Contrast	16%
Maximum Element Resolution (Code 39)	3 mil
Maximum Element Resolution (DataMatrix)	10 mil
Maximum Element Resolution (PDF417)	6.7 mil
Limited Warranty	5 Year

Interfaces/Ports
Host Interface	USB
General Information
Product Type	Barcode Scanner Kit
Manufacturer Part Number	DS9908-SR4U2100AZW
Manufacturer Website Address	http://www.zebra.com
Manufacturer	Zebra Technologies Corporation
Product Model	DS9908-SR
Product Name	DS9900 Series Corded Hybrid Imager for Retail
Product Series	DS9900
Brand Name	Zebra
Miscellaneous
Application/Usage	Retail
Application/Usage	Quick Service Restaurant (QSR)
Application/Usage	Industrial
Application/Usage	Convenience Store
Package Contents	DS9900 Series Corded Hybrid Imager for Retail DS9908-SR00004ZZWW Scanner CBA-U21-S07ZBR Suielded USB Cable
Ingress Protection (IP) Rating	IP52
Physical Characteristics
Weight (Approximate)	11.64 oz
Form Factor	Handheld
Height	8"
Width	3.7"
Depth	5.2"
Product Color	Midnight Black
Technical Information
Barcode Symbology Supported	1D: Code 39 Code 128 Code 93, Codabar/NW7 Code 11 MSI Plessey UPC/EAN I 2 of 5 Korean 3 of 5 GS1 DataBar Base 32 (Italian Pharma) 2D: PDF417 Micro PDF417 Composite Codes TLC-39 Aztec DataMatrix MaxiCode QR Code Micro QR Han Xin Postal Codes
Connectivity Technology	Cable
Scanning Distance	24"
Scanner Range	Standard Range
Drop Specification	DS9908: Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete
Image Sensor Type	Imager
Cable Type Included	USB
Scanning Capability	1D
Scanning Capability	2D
Field of View (Horizontal)	48°
Field of View (Vertical)	31°
Reading Angle (Skew)	60°
Reading Angle (Pitch)	60°
Reading Angle (Roll)	360°
Maximum Ambient Light	107600 lux
Minimum Print Contrast	16%
Maximum Element Resolution (Code 39)	3 mil
Maximum Element Resolution (DataMatrix)	10 mil
Maximum Element Resolution (PDF417)	6.7 mil
Warranty
Limited Warranty	5 Year
